3M 3100261 Self-retracting Lifeline 20 Ft Class 1

Product Description

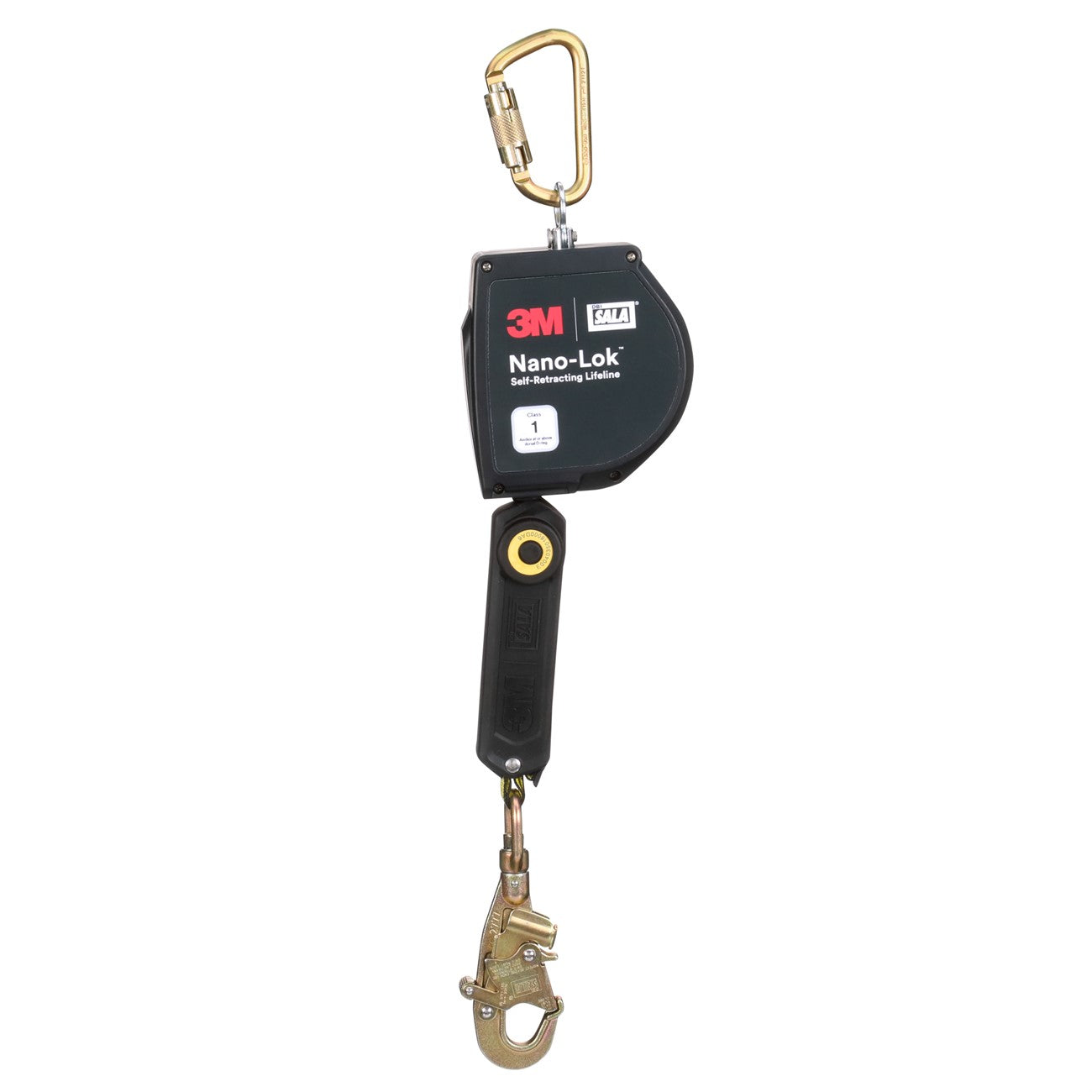

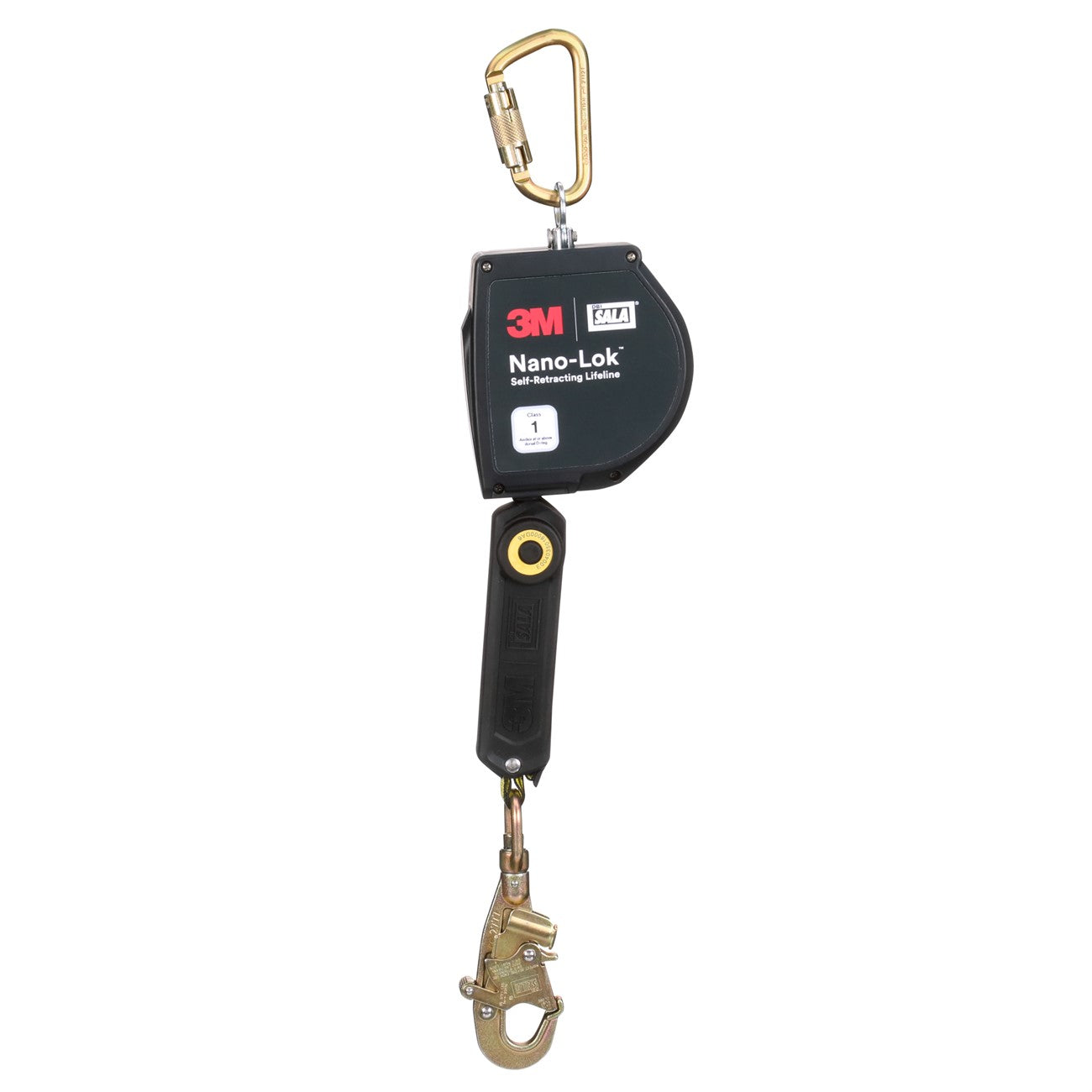

The 3M 3100261 is a self-retracting lifeline (SRL) from the DBI-SALA Nano-Lok XL series, designed for fall protection in industrial and construction environments. The unit features a Dyneema webbing lifeline for high strength at low weight, paired with a galvanized steel locking snap hook at the connection point. A swivel hook attachment reduces lifeline twisting during movement. At 6.72 pounds, the 3100261 is built for single-leg use and is classified as a Class 1 SRL per ANSI standards, making it suitable for applications where the arrest force must be strictly controlled.

This self-retracting lifeline is intended for use by workers requiring overhead or near-overhead anchorage fall protection. The 20-foot lifeline length accommodates a range of working distances from the anchorage point. Single-leg configuration makes it appropriate for general work positioning on structures, rooftops, elevated platforms, and similar job sites. It is installed and inspected by qualified safety professionals or competent persons as defined under applicable OSHA regulations.

Key Features

• Dyneema webbing lifeline provides high tensile strength with reduced weight
• Galvanized steel locking snap hook resists corrosion in outdoor and industrial environments
• Swivel hook connection minimizes lifeline twist during use
• 20-foot lifeline length for extended working range from the anchorage
• ANSI Class 1 rating ensures controlled arrest force limits
• Single-leg design for straightforward overhead anchorage applications

Compatibility

Designed as an OEM-style self-retracting lifeline for use with compatible ANSI-rated fall protection harness dorsal or sternal D-ring connections in single-leg overhead anchorage configurations.

Installation Notes

Installation and inspection must be performed by a competent person as defined by OSHA 29 CFR 1926.32. Always connect the lifeline to a certified anchorage point rated for fall arrest loads before use. Inspect the Dyneema webbing, snap hook, and swivel for wear, damage, or corrosion prior to each use. Remove the unit from service immediately following any fall event and return it to the manufacturer or a qualified inspector for evaluation.

Technical Specifications

• Lifeline Material: Dyneema Webbing
• Hook Material: Galvanized Steel
• Connection Type: Swivel Snap Hook
• Leg Count: Single Leg
• Lifeline Length: 20 feet
• ANSI Class Level: Class 1
• Weight: 6.72 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 3100261
