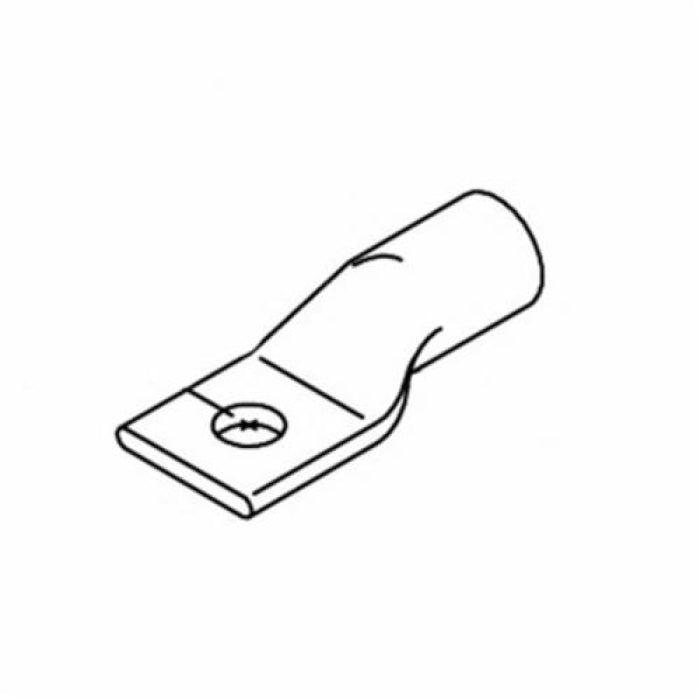

3M 30024 Scotchlok Copper 1-Hole Lug Up To 35 Kv 2 Awg Stud Size 3/8

Product Description

The 3M 30024 Scotchlok Copper 1-Hole Lug is designed for terminating copper conductors. It features a corrosion-resistant tin plating and is suitable for use with standard industry tools. The lug accommodates a two AWG conductor with a three-eighths inch stud size. This product is essential for reliable electrical connections.

• Tin plated for corrosion resistance
• Constructed from high-conductivity copper
• Chamfered ends for easier conductor insertion

Product Highlights

The 3M 30024 offers reliable performance in various electrical applications, including use in electrical panels and battery connections.

Product Information

Standard Information

• Brand: 3M
• MPN: 30024

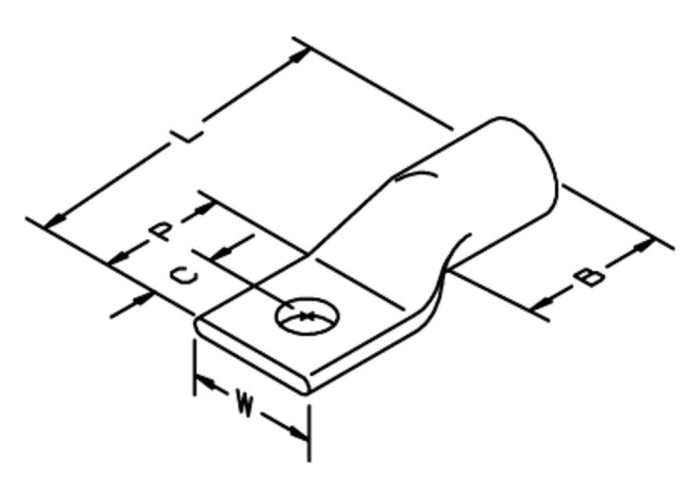

Technical Specifications

• Material: Tin plated copper
• Voltage Rating: 35 kilovolt
• Conductor Size: 2 AWG
• Stud Size: 3/8 inch
• Overall Length: 1.97 inches
• Barrel Length: 0.81 inches
• Pad Size: 0.89 inch length x 0.63 inch width
• Approval: UL, CSA
