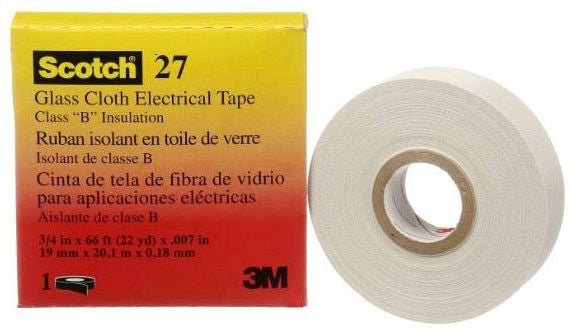

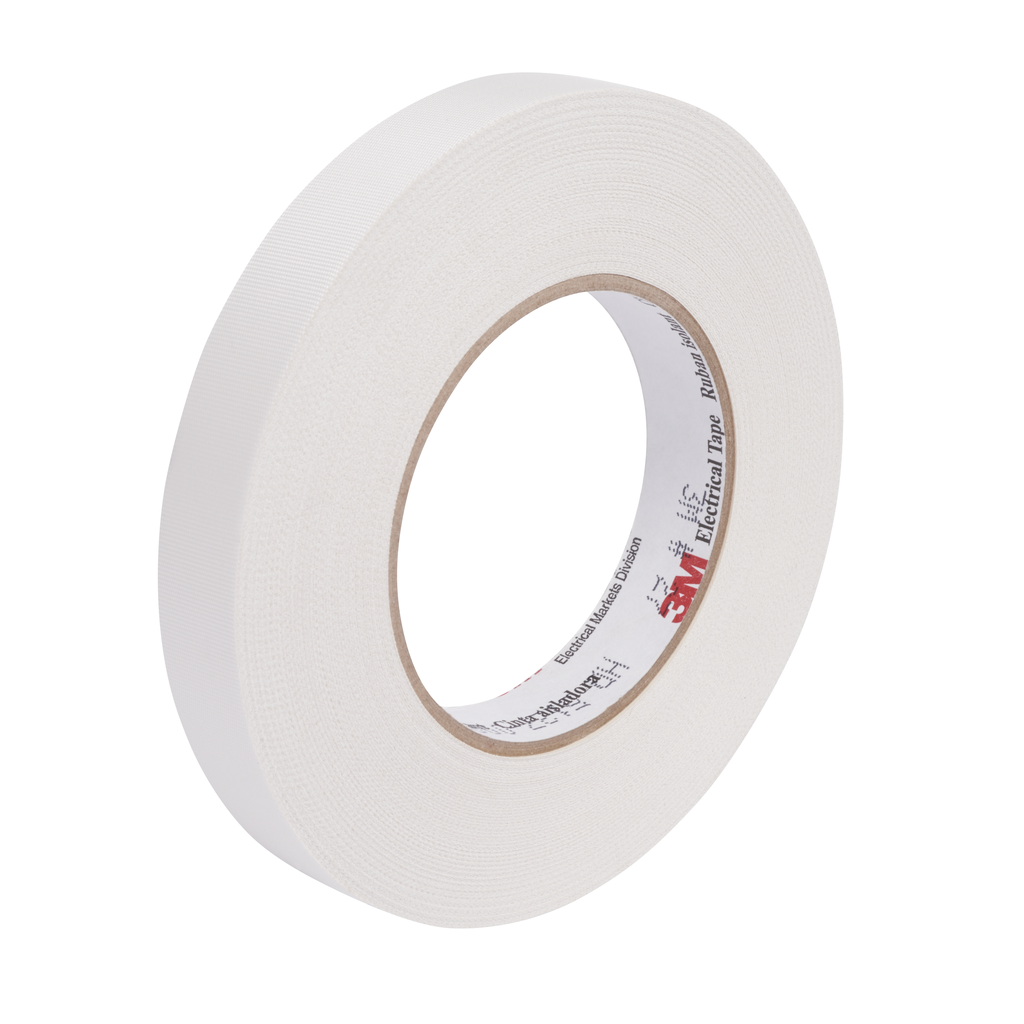

3M 27-3/4X66 Glass Cloth Electrical Tape

Product Description

3M Glass Cloth Electrical Tape 27-3/4X66 is a seven mil woven tape designed for insulation in electrical applications. It operates effectively in 600 volt dry conditions, making it suitable for high mechanical strength and heat resistance. The rubber thermosetting adhesive provides durability and corrosion protection. This tape is ideal for various electrical maintenance tasks including insulation layering and coil covering.

• Operates in 600 volt dry applications
• Pressure sensitive rubber thermosetting adhesive
• Corrosion protection and high mechanical strength

Product Highlights

3M Glass Cloth Electrical Tape is edge-tear resistant and conforms easily to various shapes. It is also printable to provide customization for different applications.

Product Information

Standard Information

• Brand: 3M
• Catalog Number: 27-3/4X66

Technical Specifications

• Material: Rubber, Glass Cloth
• Color: White
• Width: 0.75 inches
• Length: 66 feet
• Thickness: 0.177 mm
• Max Operating Temperature: 302 degrees F
• Dielectric Strength: 3000 VAC
• Adhesion Strength: 30 in-oz
• Applications: Electrical Maintenance
