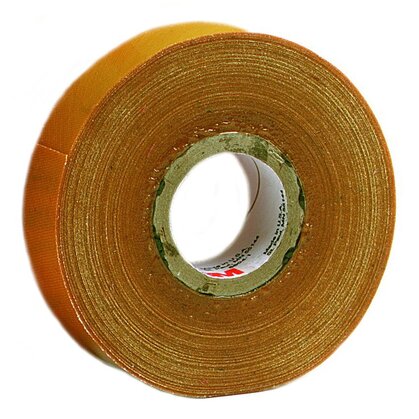

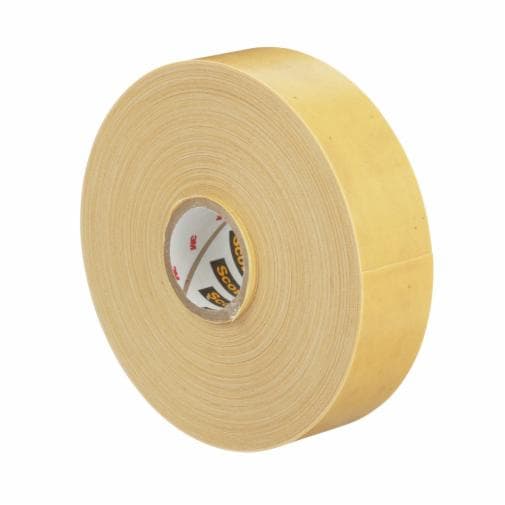

3M 2520-3/4X36YD-K Scotch Varnished Cambric Tape 3/4 in x 36 yd

Product Description

The 3M 2520-3/4X36YD-K Scotch Varnished Cambric Tape is an 8 mil thick, highly conformable, premium grade tape suitable for bus bars, motor leads, and service drop connections. It features excellent dielectric strength and is used where mechanical protection and puncture resistance are critical. The pressure-sensitive, rubber resin adhesive holds the tape in place after application and withstands temperatures up to 221 °F (105 °C).

• Straight-cut, woven, cotton-cloth backing
• Provides excellent tensile strength
• Withstands temperatures up to 221 °F (105 °C)

Product Highlights

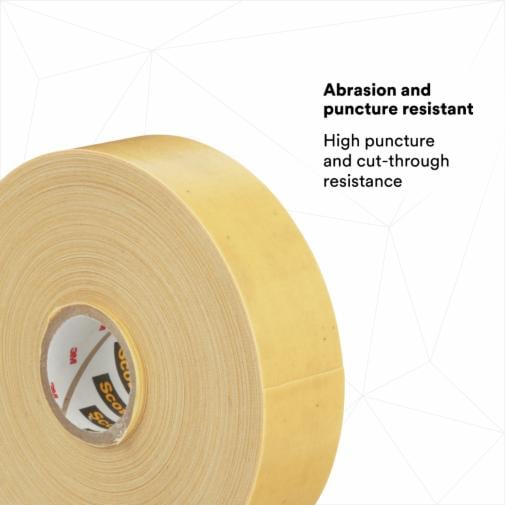

This abrasion-resistant tape has a woven cotton, cambric fabric backing coated and oil primed with electrical insulating varnish. RoHS 2011/65/EU Compliant.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 2520-3/4X36YD-K
• Country of Origin: USA

Technical Specifications

• Adhesive Type: Rubber Resin
• Application: Electrical Maintenance
• Application/Industry: Industrial Construction, Wind Power, Maintenance and Repair Operations, Mining, Solar, Utility, Appliance and Fixture, Commercial Construction, Irrigation
• Backing (Carrier) Material: Cotton Cloth
• Brands: Scotch®
• Dielectric Strength: 800 V/mil
• Maximum Operating Temperature (Celsius): 105 °C
• Maximum Operating Temperature (Fahrenheit): 220 °F
• Product Color: Yellow
• Specifications Met: ASTM D-295, ASTM D-374, ASTM D-1000, RoHS 2011/65/EU
• Tape Grade: Professional
• Overall Length (Imperial): 36 yd
• Overall Length (Metric): 32.9 m
• Overall Width (Imperial): 0.75 in
• Overall Width (Metric): 19.05 mm
• Tensile Strength (Metric): 876 N/100mm
• Total Tape Thickness without Liner (Imperial): 16 mil
• Total Tape Thickness without Liner (Metric): 0.203 mm
• Width (Decimal Inch): 0.7500"
• Width (mm): 19.05mm
• Width: 3/4 in
• Material: Fiber
• Length: 108 ft
