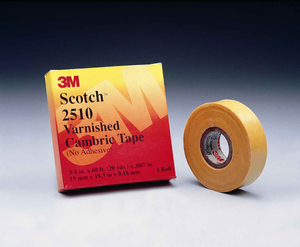

3M 2510 scotch� varnished cambric tape 2510

Product Description

The 3M 2510 Scotch� Varnished Cambric Tape is a 7 mil thick, premium grade varnished cambric tape suitable for insulating bus bars, motor leads, and service drop connections. The tape's electrical properties remain stable in temperatures from 32 to 221 �F (0 to 105 �C). It features a straight cut, woven cotton, cambric fabric backing that provides high tensile strength and ruggedness.

• Straight cut woven cotton cambric fabric is infused with yellow varnish for electrical insulation
• Provides excellent tensile strength
• Withstands a temperature range of 32 to 221 �F (0 to 105 �C)

Product Highlights

ASTM Approved and RoHS 2011/65/EU Compliant. Offers excellent dielectric strength with cut through and puncture resistance. Moisture resistant.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 2510

Technical Specifications

• Adhesive Type: Non-adhesive
• Application: Electrical Maintenance
• Application/Industry: Utility, Commercial Construction, Maintenance and Repair Operations, Industrial Construction, Irrigation, Wind Power, Mining, Appliance and Fixture, Solar
• Backing (Carrier) Material: Cotton Cloth
• Brands: Scotch�
• Dielectric Strength: 800 V/mil
• Maximum Operating Temperature (Celsius): 105 �C
• Maximum Operating Temperature (Fahrenheit): 220 �F
• Minimum Operating Temperature (Celsius): 0 �C
• Minimum Operating Temperature (Fahrenheit): 32 �F
• Product Color: Yellow
• Tape Grade: Professional
• Specifications Met: ASTM D-295, ASTM D-374, UL 94 V-2, ASTM D-1000, RoHS 2011/65/EU, ASTM Approved
• Overall Length (Imperial): 25 ft, 36 yd, 60 ft
• Overall Length (Metric): 18.3 m, 22.9 m, 32.9 m
• Overall Width (Imperial): 0.75 in, 1 in, 1.5 in, 2 in, 29 in
• Overall Width (Metric): 19.05 mm, 25.4 mm, 38.1 mm, 50.8 mm, 736.6 mm
• Tensile Strength (Metric): 876 N/100mm
• Total Tape Thickness without Liner (Imperial): 7 mil, 9 mil, 10 mil, 11 mil, 12 mil, 17 mil
• Total Tape Thickness without Liner (Metric): 0.177 mm
• Brand: 3M
• Material: Cotton
• Recommended Uses For Product: Fleet and plant maintenance.
• Surface Recommendation: Miscellaneous
• Manufacturer: 3M
• Item Thickness: 7 Mils
• Water Resistance Level: Waterproof
• Compatible Material: Fabric
• Size Name: 25 ft x 1.5 in x 0.007 in
