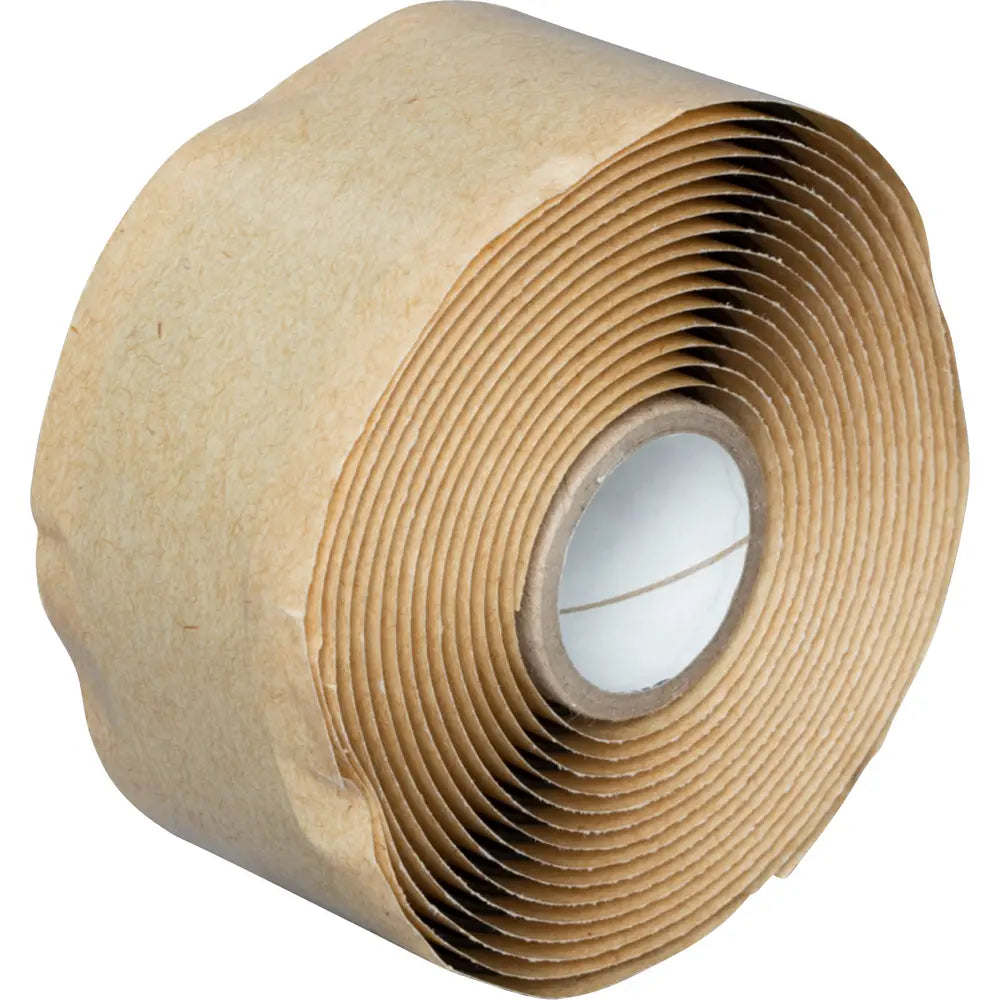

3M 2228-1X10FT Scotch Rubber Mastic Tape 1 in x 10 ft REPLACEMENT MPN

Product Description

The 3M 2228-1X10FT Scotch Rubber Mastic Tape features an ethylene propylene rubber (EPR) backing coated with an aggressive, temperature-stable mastic adhesive on a liner. Designed for electrical insulating and moisture sealing, this tape is suitable for both indoor and weather-exposed outdoor applications, offering resistance to UV exposure. It is a premium grade, highly conformable tape used to insulate, pad, and seal bus bar and splice connections.

• Ethylene propylene rubber (EPR) backing
• Coated with an aggressive, temperature-stable mastic adhesive on a liner
• Designed for electrical insulating and moisture sealing

Product Highlights

This mastic tape is ideal for electrical insulation, padding, and sealing, providing UV resistance and reliable performance in various environments.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 2228-1X10FT
• Country of Origin: US

Technical Specifications

• Type: Electrical Tape
• Width: 1 Inches
• Length: 10 Feet
• Material: Mastic
• Insulates: Yes
• Thickness: 0.065 inches
• UV Resistance: Yes
• Maximum Voltage: 600 VAC
• Backing Material: Ethylene Propylene Rubber
• Country of Origin: US
• Dielectric Strength: 500 Volt per Mil
• Maximum Continuous Temperature: 194 Deg F
• Breaking Strength: 10 Lb
• Sub Brand: Scotch
• Brand Name: 3M
• Manufacturer: 3M
