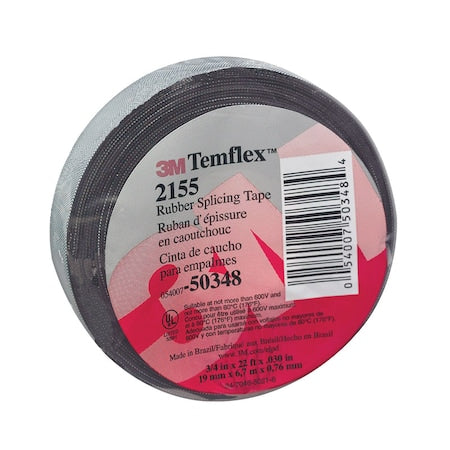

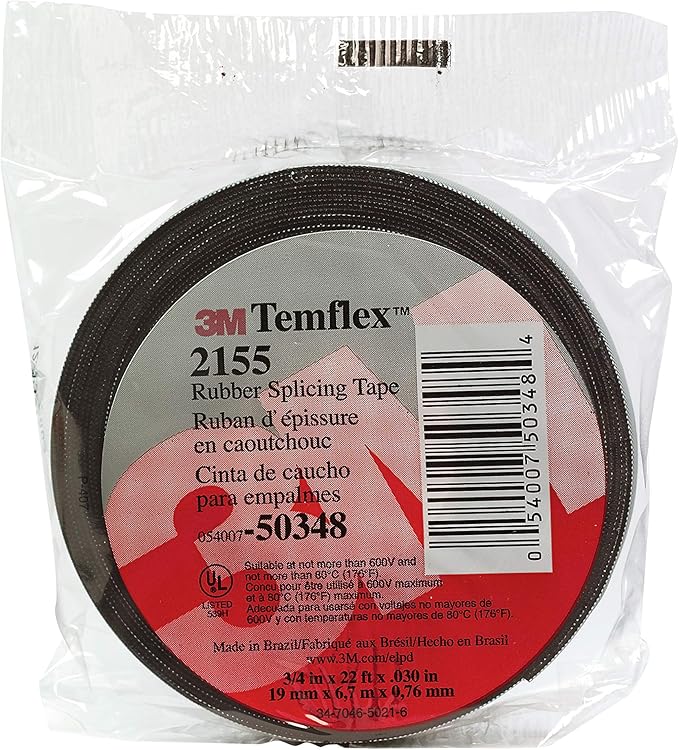

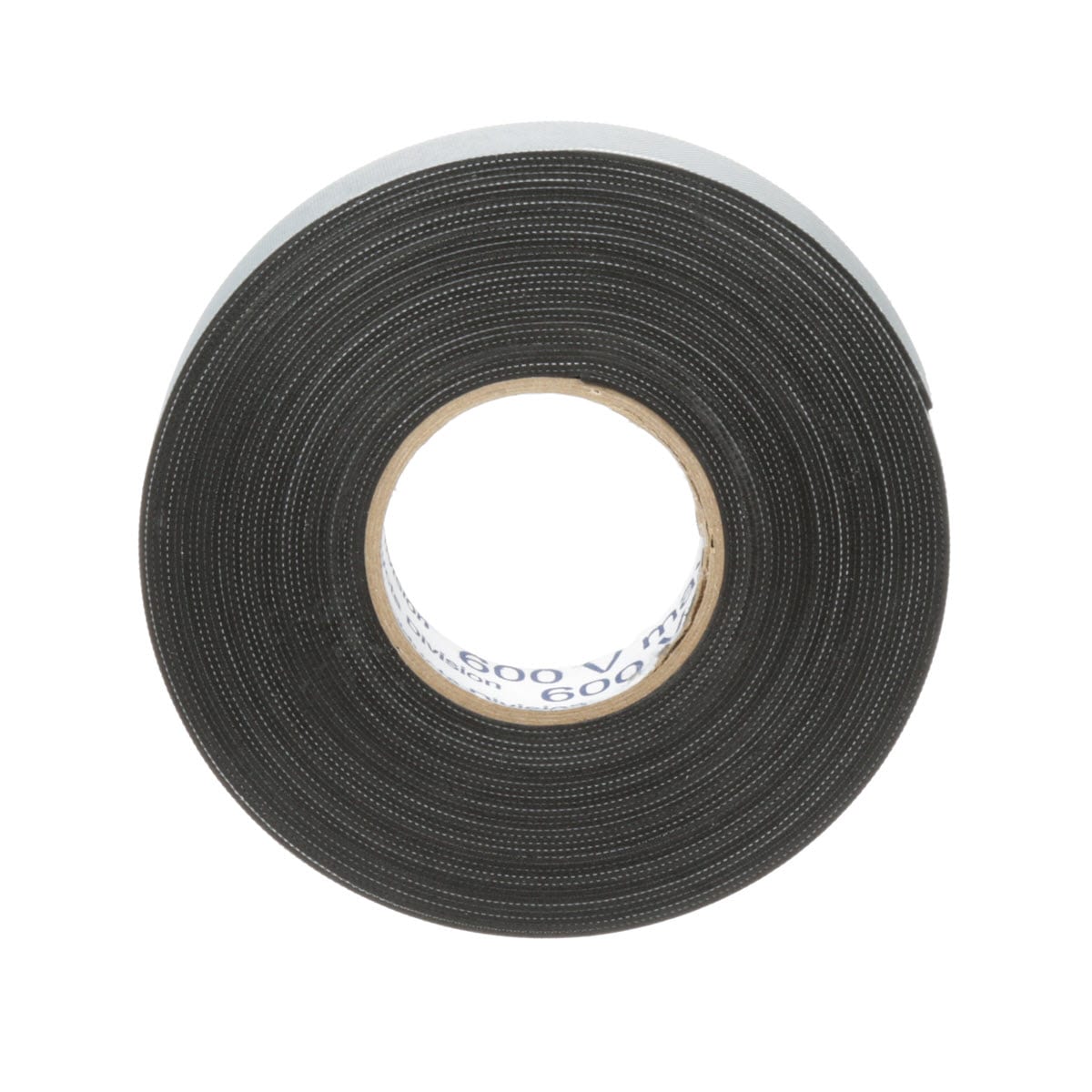

3M 2155 Temflex Rubber Splicing Tape 3/4 in. W x 22 ft. L

Product Description

The 3M 2155 Temflex Rubber Splicing Tape is a 30 mil general purpose, highly conformable, electrically insulating, low-voltage rubber splicing tape. The self-fusing tape is designed for use with solid dielectric cable insulations and has a liner that will not stick upon unwind. It withstands temperatures up to 176 degrees F (80 degrees C).

• Self-fusing rubber backing
• Rubber-resin adhesive offers optimized adherence
• Designed for low-voltage electrical insulating and moisture-sealing applications

Product Highlights

This electrical insulating tape maintains flexibility over a wide range of temperatures and is UL Listed and RoHS 2011/65/EU Compliant.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 2155
• Country of Origin: Brazil

Technical Specifications

• Brand: 3M
• MPN: 2155
• Manufacturer: 3M Company
• Adhesive Type: Non-Adhesive
• Applications: Electrical Maintenance, Insulation
• Backing (Carrier) Material: Rubber
• Backing (Carrier) Thickness (Metric): 0.76 mm
• Brands: Temflex™
• Dielectric Strength: 600 V/mil
• Elongation at Break: 700%
• Features: Vulcanizing, Self-sticking
• Maximum Operating Temperature (Celsius): 80 °C
• Maximum Operating Temperature (Fahrenheit): 176 °F
• Minimum Operating Temperature (Celsius): 0 °C
• Specifications Met: UL Listed
• Tape Grade: General Use
• Voltage Rating: 600 V
• Overall Length (Imperial): 22 ft
• Overall Length (Metric): 6.7 m
• Overall Width (Imperial): 0.75 in
• Overall Width (Metric): 19 mm
• Tensile Strength (Imperial): 300 lb/in
• Tensile Strength (metric): 2068.4 Kilopascal
• Total Tape Thickness without Liner (Imperial): 30 Milli-inch (mil)
• Total Tape Thickness without Liner (metric): 0.76 mm
