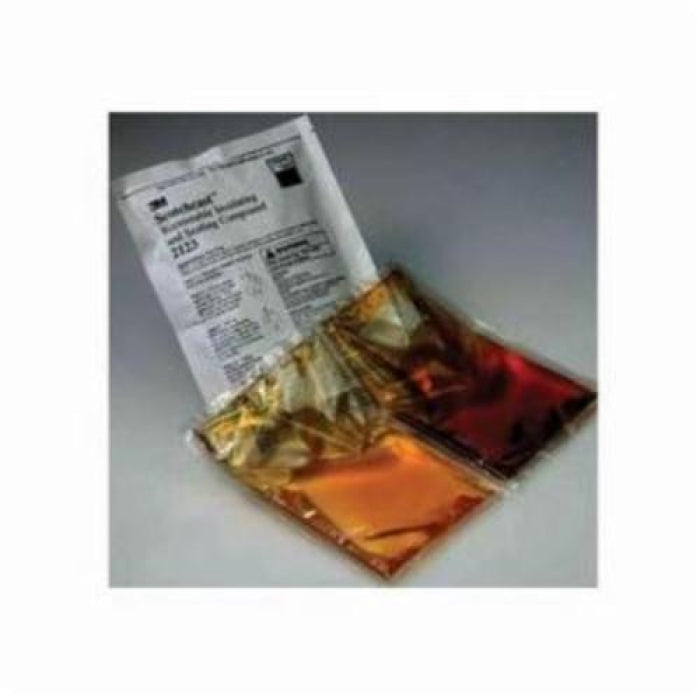

3M 2123D Re-Enterable Electrical Insulating Resin 21.2 oz Size D 05112855121

Product Description

3M 2123D is a re-enterable electrical insulating resin designed to protect electrical splices. This resin has a unique two-part formulation that offers flexibility and effective insulation for cables operating up to 1 kV. The 21.2-ounce pouch is easy to handle and pour, making it suitable for various applications where electrical insulation and sealing are required. The resin cures at room temperature and flows well, filling voids and ensuring a solid seal. It is ASTM approved and compliant with RoHS 2011/65/EU standards.

• Two-part polybutadiene resin
• Cures at room temperature
• Suitable for use in potting and sealing applications

Product Highlights

This resin is designed for re-enterable splice protection, providing excellent dielectric strength and moisture absorption properties.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: 2123D

Technical Specifications

• Container Size: 21.2 oz
• Material: Polybutadiene
• Operating Temperature: -20 to 90 deg C
• Voltage Rating: 1 kV
• Specific Gravity: Part A: 0.89 / Part B: 0.94
• Dielectric Strength: 240 V/mil
• Tensile Strength: 10.7 psi
• Curing Time: 24 hr at 70 deg F
• Gel Time: 62 min at 73 deg F
