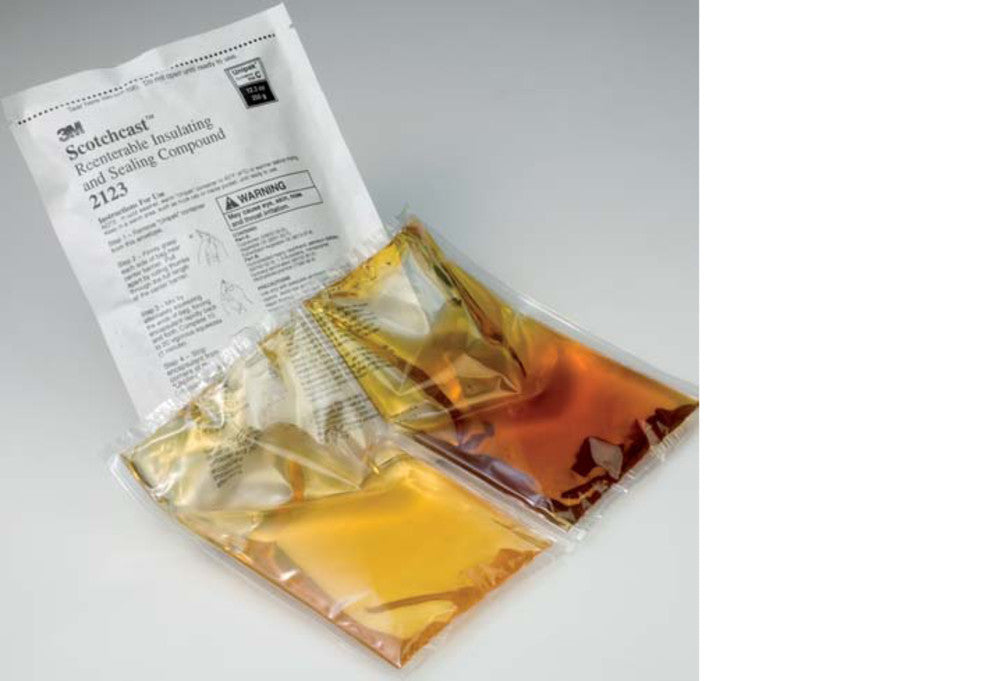

3M 2123C Re-Enterable Electrical Insulating Resin 12.3 oz

Product Description

3M Scotchcast electrical insulating resin 2123C is designed for sealing, electrical insulation, and mechanical protection of cable splices. This two-part polybutadiene resin operates at a voltage rating of up to one kV. It has a low viscosity and good wetting properties, allowing it to fill enclosures effectively while minimizing voids. This resin cures at room temperature and is compliant with ASTM and RoHS standards.

• Volume: 12.3 ounces in a two-part pouch
• Temperature rating: -20 to 90 degrees Celsius
• High flexibility with up to 300% elongation

Product Highlights

This versatile resin is suitable for various electrical applications, including potting and sealing, ensuring reliable performance in moisture-prone environments.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: 2123C

Technical Specifications

• Type: Re-Enterable
• Color: Amber/Clear/Transparent
• Specific Gravity: Part A: 0.89 / Part B: 0.94
• Curing Time: 24 hours at 70 degrees Fahrenheit
• Flash Point: >= 300 degrees Fahrenheit (Part A) / >= 450 degrees Fahrenheit (Part B)
• Dielectric Strength: 240 V/mil
• Tensile Strength: 10.7 PSI
• Applications: For sealing, electrical insulation, and mechanical protection
