3M 2104A Electrical Insulating Resin Size A 3.46 oz

Product Description

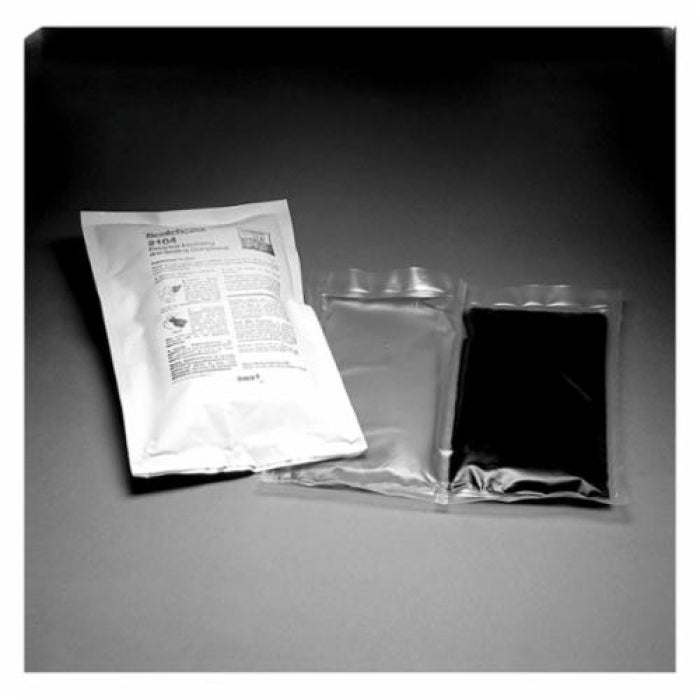

3M 2104A is an electrical insulating resin in a two-part pouch. Each package contains three point four six ounces of liquid resin that offers effective insulation and moisture sealing capabilities. This product is suitable for splicing applications in electrical setups.

• High dielectric strength for electrical insulation
• Room temperature cure and semi-flexible after application
• Designed for use with multi-core splices operating at one kV or less

Product Highlights

This resin is ideal for electrical insulation and sealing. It is commonly used in 72 N and 85 series kits and meets ASTM standards.

Product Information

Standard Information

• Manufacturer: 3M
• MPN: 2104A

Technical Specifications

• Container Size: 3.46 ounces
• Curing Time: 1 hour at 70 deg F, 20 hours at 20 deg F
• Flash Point: 230 deg F Part A, >=230 deg F Part B
• Dielectric Strength: 524 V/mil
• Tensile Strength: 444 psi
• Moisture Absorption: 0.28%
• Temperature Range: 0 to 130 deg C
• Color: Dark green
• Part A Composition: 35 to 50% Phthalic Acid, Di-C11-14-Branched Alkyl Esters
• Part B Composition: 55 to 75% Polypropylene Glycol Glycerol Triether
