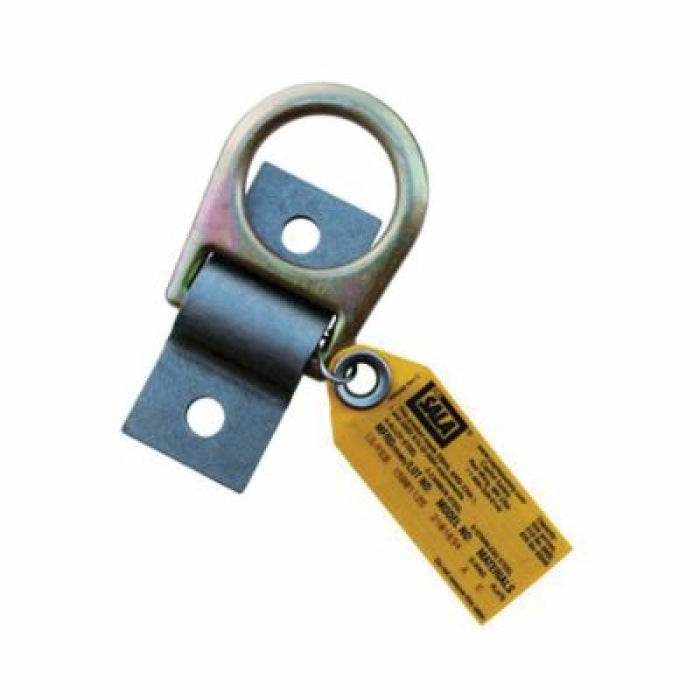

3M 2101634 D-Ring Anchorage Plate 3MF 2101634

Product Description

3M DBI-SALA Fall Protection 2101634 D-Ring Anchorage Plate is designed for secure attachment to anchor points. This product is essential in fall protection systems, providing a reliable connection between the user and the anchorage. It accommodates various work environments, including steel and concrete. The anchorage plate supports a load of 5,000 lbs, adhering to OSHA's safety standards.

• Made from hot rolled and zinc plated steel
• Pre-drilled holes for easy installation
• Compatible with various fall protection systems

Product Highlights

This anchorage plate is vital for anyone working at heights, ensuring safety and compliance with regulations.

Product Information

Standard Information

• Brand: 3M DBI-SALA Fall Protection
• Part Number: 3MF-2101634

Technical Specifications

• Material: Hot Rolled Steel/Zinc Plated Steel
• Weight Capacity: 5,000 lbs (22kN)
• Dimensions: Height 11.25 inches, Width 8.75 inches, Length 6.25 inches
• Connection Type: D-Ring
• Finish: Silver/Yellow Zinc
• Installation: Bolt or weld to structure
• Hole Size: Pre-drilled to 1/2 inch
