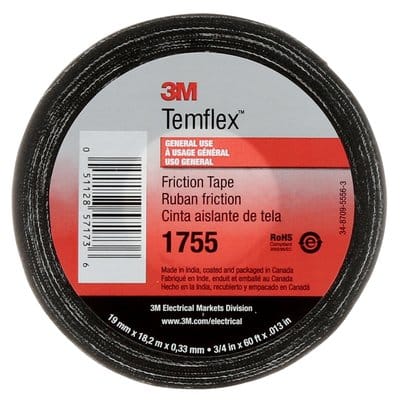

3M 1755 Temflex™ Cotton Friction Tape

Product Description

The 3M 1755 Temflex™ Friction Tape is a black friction tape designed to provide mechanical protection against abrasion and cut through for cable, wire splices, and connections insulated with rubber electrical tape. The 13 mil thick tape is composed of a high quality cotton fabric, coated on both sides with an electrical grade, solvent free, rubber adhesive. It has good abrasion resistance up to 80 °C.

• Coated cotton fabric provides high abrasion and cut-through protection on wire and cable splices
• Withstands a temperature range of 15 to 176 °F (10 to 80 °C)
• Black cotton friction tape

Product Highlights

Provides abrasion protection in wire and cable splices in addition to overwrap for mechanical protection.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 1755

Technical Specifications

• Adhesive Type: Rubber
• Application: Insulation, Electrical Maintenance
• Backing (Carrier) Material: Cotton
• Backing (Carrier) Thickness (Imperial): 13 mil
• Backing (Carrier) Thickness (Metric): 0.33 mil
• Brands: Temflex™
• Indoor/Outdoor: Indoor/Outdoor
• Industries: Electronics, General Industrial
• Maximum Operating Temperature (Celsius): 80 ℃
• Maximum Operating Temperature (Fahrenheit): 176 ℉
• Product Color: Black
• Specifications Met: RoHS 2011/65/EU
• Back Side Adhesive Thickness (Metric): 0.33 mm
• Overall Length (Imperial): 60 ft, 82.5 ft
• Overall Length (Metric): 18.3 m, 25.2 m
• Overall Width (Imperial): 0.75 in, 1.5 in, 2 in
• Overall Width (Metric): 19 mm, 38.1 mm, 50.8 mm
• Tensile Strength (Imperial): 48 lb/in
• Tensile Strength (Metric): 840.5 N/100mm
• Total Tape Thickness without Liner (Imperial): 13 mil
• Total Tape Thickness without Liner (Metric): 0.33 mm
• Part Number: 3MT-7000058870
• UPC: 00051128571736
• Size: 3/4 in x 60 ft
