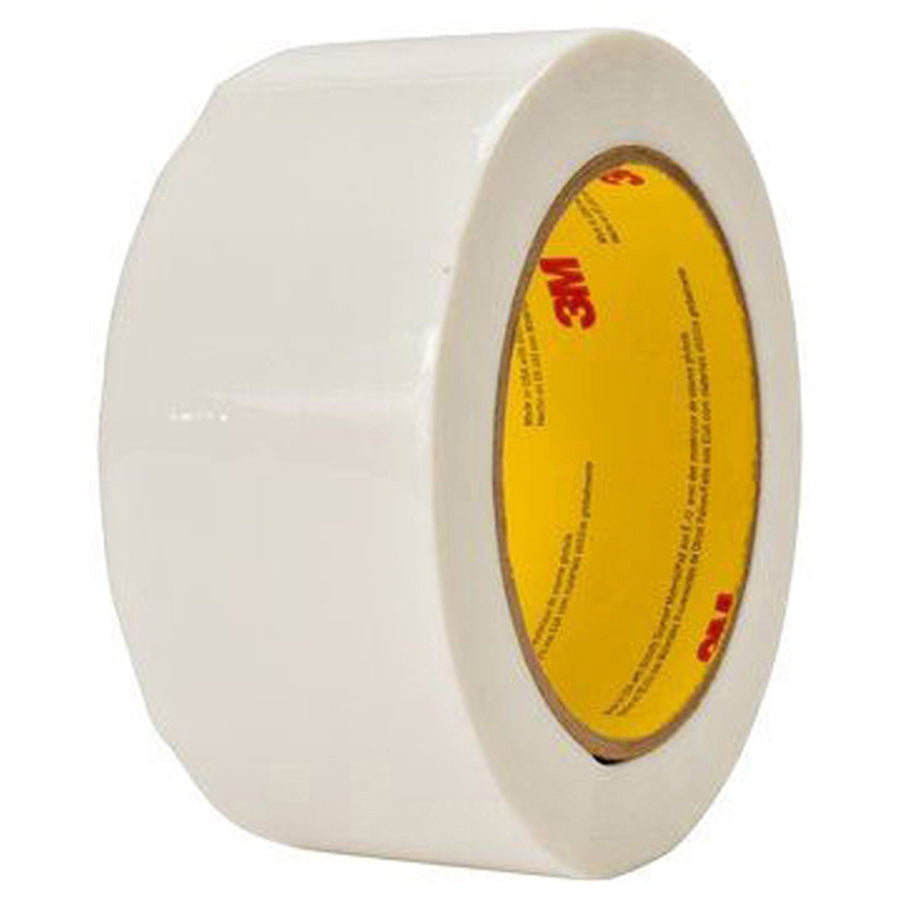

3M 1507-WHITE_48X55 Line Set Tape White 2in X 60yd Hvac

Product Description

The 3M 1507-WHITE_48X55 is a white polypropylene line set tape designed to protect and bundle refrigerant line sets and foam pipe insulation in HVAC installations. The tape measures 48 millimeters (approximately 2 inches) wide by 55 meters (approximately 60 yards) long with a 3 mil thickness. It uses a biaxially oriented polypropylene film backing paired with a specially formulated cold-weather acrylic adhesive, providing a weatherproof bond rated for up to six months of outdoor exposure. Licensed HVAC technicians use this tape as the finishing layer on line set insulation to keep out moisture, UV light, and mechanical abrasion.

This tape is suited for residential and light commercial HVAC line set applications where the refrigerant piping runs along exterior walls, through conditioned spaces, or across rooftops. It conforms well to curved and irregular surfaces, making it practical for wrapping foam insulation sleeves on suction and liquid lines. The cold-weather acrylic adhesive allows installation in sub-zero conditions without losing tack, and the tape remains stable through tropical temperature extremes as well. No special tools or application methods are required, and the linerless, self-wound construction speeds up fieldwork.

Key Features

• Linerless and self-wound design allows fast, single-handed application on the job
• UV-resistant polypropylene film backing rated for six months of outdoor weathering
• Cold-weather acrylic adhesive performs from -40 degrees F to 185 degrees F
• 3 mil thickness provides durable protection against mechanical abrasion and moisture
• Conforms to curved and irregular surfaces without lifting or gapping
• Meets UL 723 and ISO 9001 standards

Compatibility

Designed for taping refrigerant line sets and foam pipe insulation in residential and commercial HVAC systems. Suitable for use as a finishing wrap over standard foam insulation sleeves on copper suction and liquid lines.

Installation Notes

This tape is installed by HVAC technicians as part of line set insulation finishing. Ensure the foam insulation and any pipe surfaces are clean and dry before application for best adhesion. Overlap each wrap pass by at least half the tape width to avoid gaps that allow moisture infiltration. No power shutoff is required for tape application alone, but always follow standard lockout procedures if working near energized equipment.

Technical Specifications

• Color: White
• Width: 48 millimeters (approximately 2 inches)
• Length: 55 meters (approximately 60 yards)
• Thickness: 3 mil
• Temperature Rating: -40 degrees F to 185 degrees F
• Backing Material: Biaxially Oriented Polypropylene
• Adhesive Material: Acrylic
• Application: Line set taping, foam pipe insulation
• Applicable Standards: UL 723, ISO 9001

Standard Information

• Brand: 3M
• Manufacturer Part Number: 1507-WHITE_48X55
