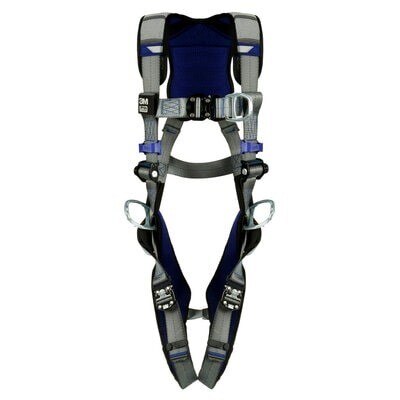

3M 1402053 Comfort Vest Safety Harness X-large 310 Lb

Product Description

The 3M 1402053 is a full-body comfort vest safety harness designed for fall protection applications at height. Part of the DBI-SALA ExoFita X200 series, it is built with 6,000 lb tensile-strength polyester webbing, alloy steel hardware, and a nylon/polyester hybrid comfort padding system. The stand-up dorsal D-ring enables faster, more efficient back-connection during rigging, and the anti-slide D-ring plate reduces unwanted movement during use. Dual-locking quick-connect buckles at the chest and legs lock to webbing and resist unintended adjustment. Rated to a 310 lb working load capacity, this harness is sized X-Large and is intended for installation and inspection by qualified workers operating under applicable fall-protection regulations.

This harness is suited for general industry, construction, and climbing or positioning applications where full-body fall arrest equipment is required. The low-profile suspension trauma strap is integrated directly between the harness webbing, reducing post-fall suspension trauma risk while keeping the profile compact. The integrated easy-link SRL adapter allows quick connection and disconnection of personal self-retracting lanyards without additional hardware. 3M Connected Safety RFID is built in to support inventory tracking, inspection scheduling, and record management across a work crew. Four connection points support a range of rigging configurations for climbing, positioning, and restraint tasks.

Key Features

• 310 lb rated load capacity with 6,000 lb polyester webbing tensile strength
• Stand-up automatic dorsal D-ring for efficient back-connections and reduced rigging time
• Anti-slide dorsal D-ring plate helps minimize D-ring migration during work
• Dual-locking quick-connect buckles at chest and leg straps resist unintended adjustment
• Revolving torso adapters allow fast fit adjustment and lock webbing securely in place
• Integrated easy-link SRL adapter for tool-free personal SRL connection and disconnection
• 3M Connected Safety RFID integrated for inspection tracking and inventory management
• Low-profile suspension trauma strap integrated between harness webbing

Compatibility

Designed as an OEM full-body fall arrest harness compatible with personal self-retracting lanyards and snap hooks at four connection points; specified compatible models or system families were not identified in the available product data.

Installation Notes

Donning, adjustment, and inspection must be performed by a competent person as defined under OSHA 29 CFR 1926.502 and applicable ANSI/ASSP Z359 standards. Power down or de-energize adjacent equipment before working near energized systems. Inspect all webbing, hardware, and stitching before each use and retire the harness immediately following any fall event. Consult the manufacturer instruction manual for proper fit verification and connection-point usage guidance.

Technical Specifications

• Series: DBI-SALA ExoFita X200
• Size: X-Large
• Load Capacity: 310 lb
• Tensile Strength: 6,000 lb
• Connection Points: 4
• Strap Material: Polyester
• Padding Material: Nylon/Polyester Hybrid
• Hardware Material: Alloy Steel
• Chest Buckle: Dual Lock Quick Connect, Aluminum Alloy/Zinc Plated Steel
• Leg Buckle: Dual Lock Quick Connect, Aluminum Alloy/Zinc Plated Steel
• Torso Buckle: Revolving, Aluminum Alloy/Zinc Plated Steel
• D-Ring Material: Zinc Plated Steel
• Padding Location: Back, Leg
• Color: Gray
• RFID: 3M Connected Safety ID Integrated
• Weight: 6.199 pounds
• UPC: 00648250188439

Standard Information

• Brand: 3M
• Manufacturer Part Number: 1402053
