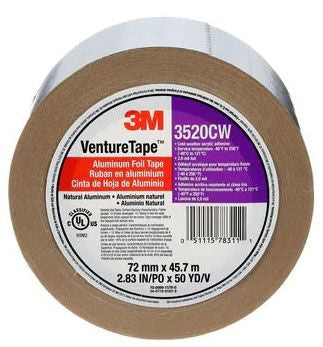

3M 1087633 Venture Tape 3520CW Aluminum Foil Tape 72mm x 45.7m (16 Roll Case) 7100043750

Product Description

3M 1087633 is an aluminum foil tape (series 3520CW) with a dead soft aluminum backing and pressure-sensitive acrylic adhesive, designed for HVAC and duct applications. The tape measures 72 mm wide and 45.7 m long, conforms to irregular and curved surfaces, and is hand-tearable for field installation. It is rated for use from -40 to 250°F and meets UL 723 and ISO 9001 standards.

• Dead soft aluminum backing (2.0 mil) with acrylic adhesive formulated for -40 to 250°F
• Conforms to fibrous and sheet metal ducts; hand tearable for on-site installation
• 72 mm width, 45.7 m length; peel adhesion 50 oz/in, tensile strength 23 lb/in

Product Highlights

Aluminum foil backing, acrylic adhesive, HVAC and duct sealing, UL 723 and ISO 9001 compliant

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 1087633

Technical Specifications

• Brand: 3M
• Manufacturer Part Number: 1087633
• Manufacturer Part Number Additional: 7100043750
• Series/Model: 3520CW
• Product Name: Venture Tape Aluminum Foil Tape
• Type: Foil Tape
• Product Category: Tapes
• Width: 2.83465 in
• Length: 1799.21 in
• Backing Material: Dead soft aluminum
• Backing Thickness: 2.0 mil
• Overall Thickness: 3.7 mil
• Adhesive Material: Acrylic
• Liner Material: Paper (kraft liner)
• Temperature Rating: -40 to 250 Deg F
• Peel Adhesion: 50 oz/in
• Tensile Strength: 23 lb/in
• Elongation: 8.5 %
• Applicable Standard: UL 723, ISO 9001
• Application: HVAC, fibrous and sheet metal duct
• Pack Quantity: 16 Roll per Case
• UPC: 051115783111
• UNSPSC: 31201521
• Status: Active
