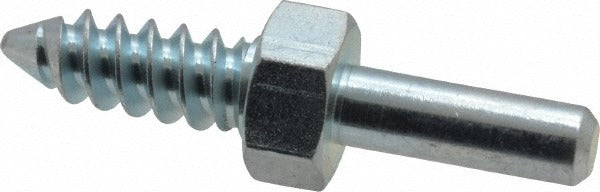

3M 05726 Deburring Wheel Mandrel 0.25 Inch Shank

Product Description

The 3M 05726 is a mandrel designed to mount and drive unitized deburring wheels in portable and bench-mounted rotary tools. It features a 0.25 inch shank diameter that fits standard chuck sizes commonly used in die grinders and drill presses. Rated to 35,200 RPM, the 05726 is built for high-speed deburring, edge blending, and surface conditioning tasks on metal components. Fabricators, pipefitters, and machinists use this mandrel when working with 3M unitized wheels to remove burrs and sharp edges from drilled, cut, or machined parts.

This mandrel is suited for light to medium deburring work in fabrication shops, plumbing rough-in, and mechanical assembly environments. It is compatible with unitized deburring wheels measuring 1 inch in diameter by 1 inch wide with a 3/16 inch center hole. It mounts in any rotary tool or die grinder fitted with a standard 0.25 inch collet or chuck. The compact form factor makes it practical for in-place deburring on pipe ends, fittings, and machined housings.

Key Features

• 0.25 inch shank diameter fits standard die grinder and drill press chucks
• Maximum operating speed of 35,200 RPM for high-speed surface work
• Compatible with 1 inch diameter by 1 inch wide unitized deburring wheels with 3/16 inch hole
• Designed for deburring, edge blending, and surface conditioning on metal
• Sold individually, no minimum order beyond single unit

Compatibility

Compatible with unitized deburring wheels measuring 1 inch in diameter by 1 inch wide with a 3/16 inch center hole. Fits rotary tools and die grinders with a standard 0.25 inch collet or chuck.

Installation Notes

Installation is performed by fabricators or mechanics using a standard die grinder or drill press with a 0.25 inch collet. Always power down and disconnect the tool from its power source before mounting or removing the mandrel or wheel. Confirm that the wheel and mandrel assembly does not exceed the 35,200 RPM maximum rated speed of the mandrel before operation. Inspect the wheel for cracks or damage before each use and ensure the wheel is properly seated and secured on the mandrel.
