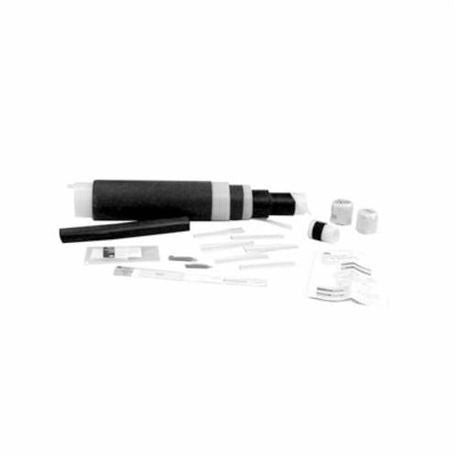

3M 054007-44101 5514A Cold Shrink QS-III Splice Kit 15 kV 4/0 AWG - 500 kcmil Conductor

Product Description

The 3M 054007-44101 5514A Cold Shrink QS-III Splice Kit is a reliable solution for splicing power cables in various applications. This kit is designed to provide effective connections for tape shield, wire shield, UniShield or longitudinally corrugated shielded power cables at a voltage rating of fifteen thousand volts. With a cold shrink design, this splice kit accommodates type MV-90 cables and both copper and aluminum conductors, ensuring quick and consistent installations.

• Rated for fifteen thousand amps for fault current protection.
• Compatible with 4/0 AWG to 500 kcmil conductor sizes.
• Ideal for feeder and distribution circuits, as well as direct burial installations.

Product Highlights

This splice kit offers excellent electrical stress control via its innovative electrode design and features a silicon rubber body for enhanced thermal performance.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Type: Cold Shrink QS-III
• Color: Black
• Voltage Rating: 15 kV
• Conductor Size: 4/0 AWG to 500 kcmil
• Application: For Direct Burial Installations, Feeder and Distribution Circuits
• Splice Length: 29 in
• Temperature Rating: 105 to 140 deg C
• Connector Type: In-Line
• Material: Silicon Rubber
• Features: In-line splice for joining various cable types
