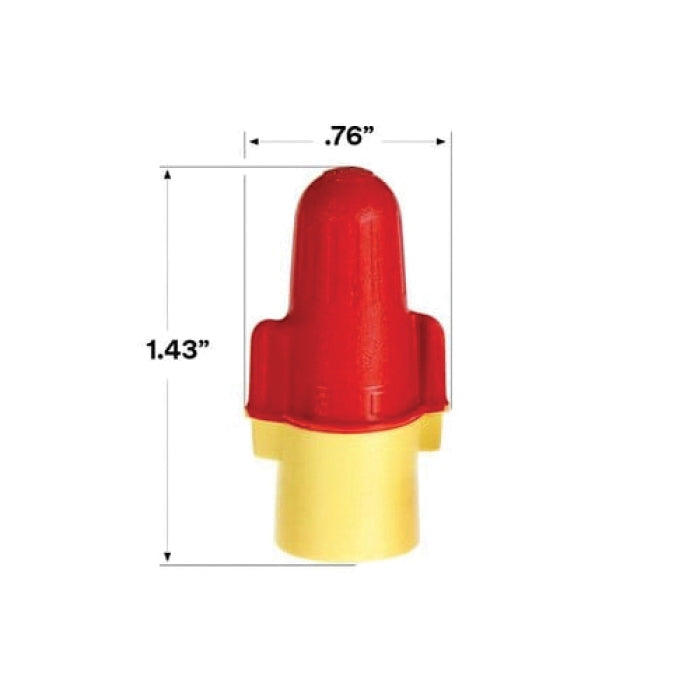

3M 054007-43154 wire connector 22 to 8 AWG wire

Product Description

The 3M 054007-43154 Performance Plus Wire Connectors feature a flexible spring designed for expansion and a strong, secure connection. With an increased wire range, these connectors can handle the work of multiple standard connectors. The flexible skirt helps prevent copper exposure, enhancing safety. These connectors accommodate 22 to 8 AWG wire and have a voltage rating of 600V.

• Strong bite for a secure, reliable connection
• Flexible spring expands for greater wire range and reuse
• Dual color coded one connector does the job of two traditional connectors in the majority of applications

Product Highlights

Performance Plus wire connectors offer a secure connection and enhanced safety with a flexible spring and skirt.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 054007-43154

Technical Specifications

• Material: Spring Steel
• Shell Style: Rounded Wing
• Spring Type: Live Action/Square Wire
• Type: Flame Retardant Twist On
• Voltage Rating: 600 V
• Wire Type: Aluminum/Copper
• Brand: 3M
• Connector Type: Wire Connector
• Maximum Wire Size: 8 AWG
• Minimum Wire Size: 22 AWG
• Flame Retardant: Yes
• Cable Type: Solid, Stranded
• Insulated/Non-Insulated: Insulated
• Insulation Material: Polypropylene/Thermoplastic Elastomer
• Wire Size: 22 to 8 AWG
• Maximum Operating Temperature: 105°F
• Maximum Cable Insulation Outer Diameter: 3.7 mm
• Temperature Rating: 221 deg F
