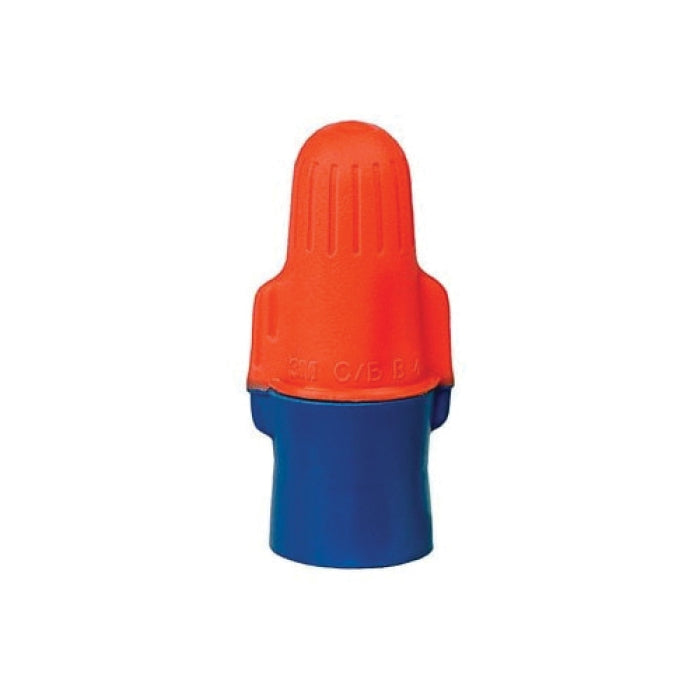

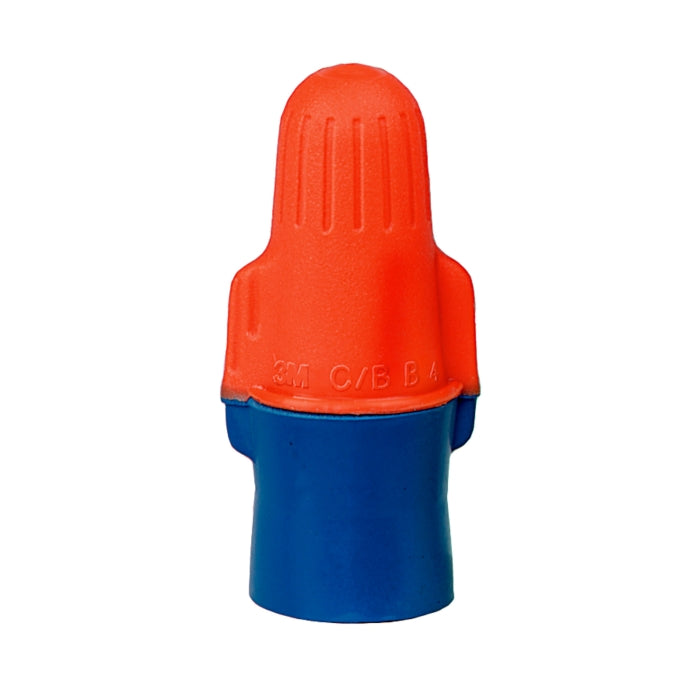

3M 054007-43152 Performance Plus Wire Connector 22 to 12 AWG

Product Description

The 3M 054007-43152 Performance Plus Wire Connectors feature a flexible spring designed for expansion and a secure connection. With an increased wire range, these connectors can handle the work of eight standard connectors. The flexible skirt helps prevent copper exposure for enhanced safety. Suitable for aluminum or copper wires.

• Strong bite for a secure, reliable connection
• Flexible spring expands for greater wire range and reuse
• Dual color coded one connector does the job of two traditional connectors in the majority of applications

Product Highlights

Flame retardant twist on wire connectors with live action/square wire spring for aluminum/copper wires.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 054007-43152

Technical Specifications

• Material: Plastic/Steel Spring
• Shell Style: Rounded Wing
• Spring Type: Live Action/Square Wire
• Type: Flame Retardant Twist On
• Voltage Rating: 600 V
• Wire Type: Aluminum/Copper
• Brand: 3M
• Connector Type: Wire Connector
• Maximum Wire Size: 12 AWG
• Minimum Wire Size: 22 AWG
• Insulation Material: Polypropylene
• Application: For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection
• Standard & Approvals: C22.2 #188-MI983 File No LR15503 CSA Certified, CE Certified, IEC, RoHS Compliant, UL 486C UL File No E23438 Listed
• Temperature Rating: 221 deg F
• Minimum Conductor Leg Diameter: 22 AWG
