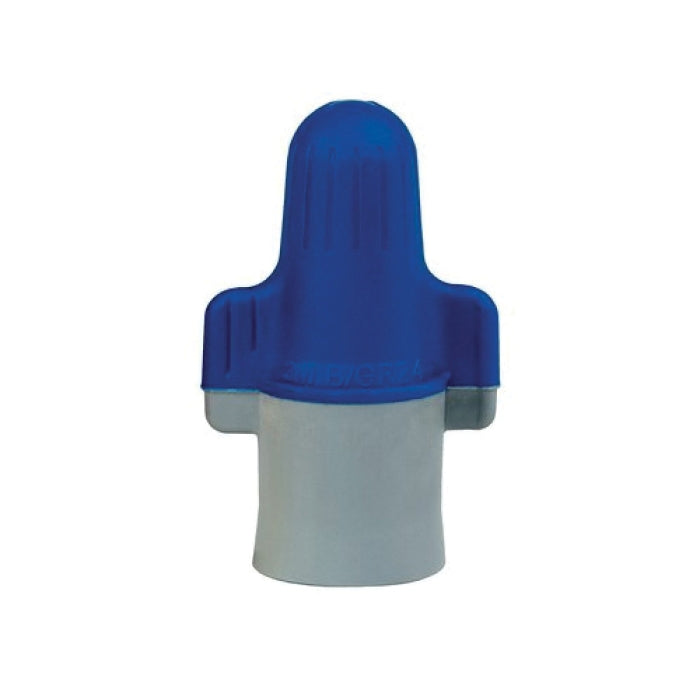

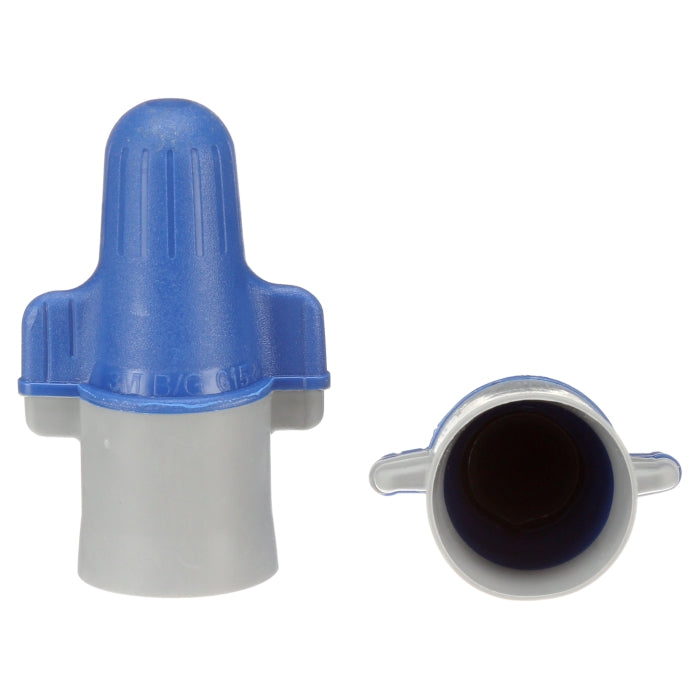

3M 054007-43150 Performance Plus B/G+ flame retardant twist on wire connector

Product Description

The 3M 054007-43150 Performance Plus Wire Connectors feature a flexible spring for expansion and a strong bite for a secure connection. These flame retardant twist-on connectors accommodate an increased wire range, with just three Performance Plus wire connectors handling the work of eight standard connectors. The flexible skirt helps prevent copper exposure for enhanced safety.

• Strong bite for a secure, reliable connection
• Flexible spring expands for greater wire range and reuse
• Dual color coded one connector does the job of two traditional connectors in the majority of applications

Product Highlights

Flame retardant twist-on wire connectors with a uniquely flexible spring and increased wire range for secure and reliable connections.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 054007-43150
• Country of Origin: US

Technical Specifications

• Color: Blue/Gray
• Material: Plastic/Steel Spring
• Series: Performance Plus B/G+
• Shell Style: Rounded Wing
• Spring Type: Live Action/Square Wire
• Temperature Rating: 221 deg F
• Type: Flame Retardant Twist On
• Voltage Rating: 600/750 V
• Wire Size: 14 to 6 AWG
• Wire Type: Aluminum/Copper
• Application: For Electrically Connect Two or More Conductor Ends in a Pigtail Application and Insulate the Connection
• Standard & Approvals: C22.2 #188-MI983 File No LR15503 CSA Certified, CE Certified, IEC, RoHS Compliant, UL 486C UL File No E23438 Listed
• Connector Type: Wire Connector
• Maximum Wire Size: 6 AWG
• Minimum Wire Size: 14 AWG
• Model: 054007-43150
• Performance Plus: B/G+
