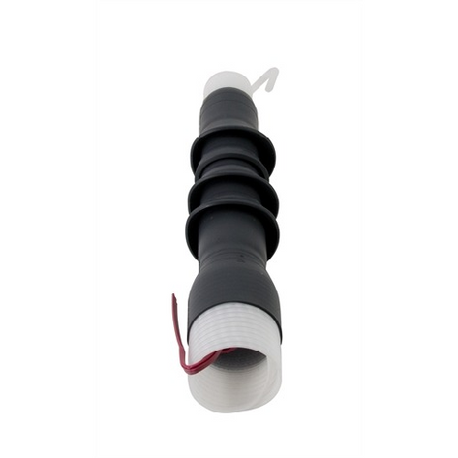

3M 054007-42214 7690-S Cold Shrink QT-III Termination Kit, Silicone Rubber, Black, 1.05 - 1.8 in OD Cable Insulation

Product Description

The 3M 7690-S Cold Shrink QT-III Termination Kit with MPN 054007-42214 provides an effective solution for cable terminations. This termination kit is designed to ensure a tight and pliable seal for various cable types, including tape shield, wire shield, and UniShield power cables. It is suited for use with cable insulation in a range of diameters from 1.05 to 1.8 inches and rated for voltage levels between five and thirty-five kV.

• Includes three 1-piece, skirted terminations.
• Utilizes silicone rubber insulation for durability.
• Highly dielectric material for efficient electric field stress distribution.

Product Highlights

Designed for outdoor and weather-exposed applications, ensuring reliability and performance in challenging environments.

Product Information

Standard Information

• Application: For Outdoor and Weather-Exposed
• Brand: 3M

Technical Specifications

• Material: Silicone Rubber
• Voltage Rating: 150 kV BIL
• Cable Insulation Diameter: 1.05 - 1.8 in
• Maximum Installed Length: 12-1/4 in
• Number of Pieces: 3
• Conductor Size Range: (5 kV) 700 - 1500 kcmil, (8 kV) 600 - 1250 kcmil, (15 kV) 500 - 1000 kcmil, (25/28 kV) 250 - 800 kcmil
• Approvals: IEEE 48 Class 1 Approved
