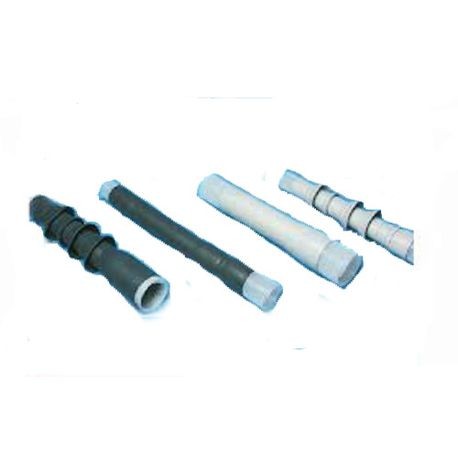

3M 054007-42213 7690-S Cold Shrink QT-III Termination Kit, 3, Silicone Rubber, Black, 0.83 - 1.53 in OD Cable Insulation

Product Description

The 3M Cold Shrink QT-III 7690-S Termination Kit, with MPN 054007-42213, is designed for use with power cables, ensuring a strong seal and reliable insulation. This kit includes three skirted terminations to effectively shield tape shield, wire shield, and UniShield power cables. The combination of high dielectric material and silicone rubber provides excellent electrical performance under various conditions.

• Designed for outdoor and weather-exposed applications.
• Features three 1-piece, 3-phase terminations.
• Withstands voltage ranging from five kV to thirty-five kV.

Product Highlights

This termination kit is essential for maintaining cable integrity in harsh environments. It helps to prevent leaks and ensures optimal electrical performance.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Material: Silicone Rubber
• Conductor Size Range: (5 kV) 500 - 750 kcmil, (8 kV) 350 - 700 kcmil, (15 kV) 4/0 AWG - 500 kcmil, (25/28 kV) 2/0 AWG - 250 kcmil
• Number of Pieces: 3
• Color: Black
• Specifications: 150 kV BIL-Rated, 0.83 - 1.53 in OD Cable Insulation, 12-1/4 in Maximum Installed Length
• Standard & Approvals: IEEE 48 Class 1 Approved
