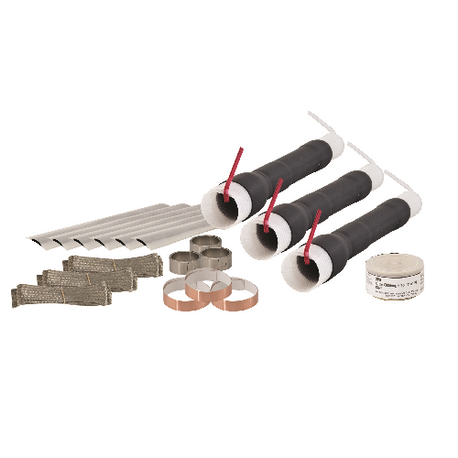

3M 054007-42212 7690-S Cold Shrink QT-III Termination Kit, 3, Silicone Rubber, Black, 0.72 - 1.29 in OD Cable Insulation

Product Description

The 3M 7690-S Cold Shrink QT-III Termination Kit, MPN 054007-42212, is designed for reliable cable insulation. This kit features three skirted terminations suitable for tape shield, wire shield, and UniShield power cables. It offers effective sealing while withstanding voltage levels from five to thirty-five kV.

• Includes three 1-piece cold shrink terminations
• Constructed from high dielectric-constant silicone rubber
• Designed for outdoor and weather-exposed applications

Product Highlights

This termination kit provides a void-free seal, ensuring durability and reliability for electrical connections.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Color: Black
• Material: Silicone Rubber
• Type: Cold Shrink QT-III
• Series: 7690-S
• Specifications: 150 kV BIL-Rated, 0.72 - 1.29 in OD Cable Insulation, 12-1/4 in Maximum Installed Length
• Suitable For Use With: Conductor Size Range (5 kV) 300 - 500 kcmil, (8 kV) 250 - 500 kcmil, (15 kV) 2/0 AWG - 300 kcmil, (25/28 kV) 2 - 4/0 AWG
• Standard & Approvals: IEEE 48 Class 1 Approved
• UPC: 054007422129
• GTIN: 00054007422129
