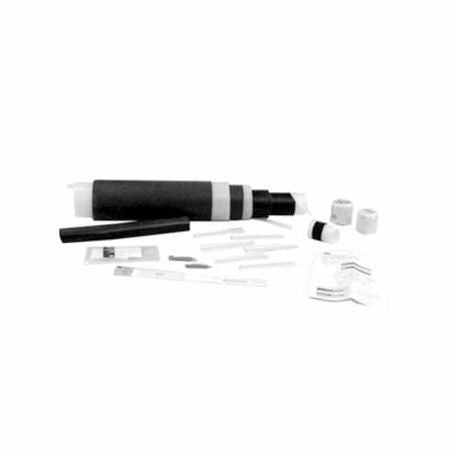

3M 054007-42134 5515A Cold Shrink QS-III Splice Kit 15 kV 350 - 750 kcmil Conductor

Product Description

The 3M 5515A Cold Shrink QS-III Splice Kit, MPN 054007-42134, is designed for joining shielded power cables in various applications. This splice kit supports a voltage rating of 15 kV and is suitable for conductors ranging from three hundred fifty to seven hundred fifty kcmil. It is capable of quick installation and ensures effective cable size transitions.

• In-line splice for shielded power cables
• Rated for faults current protection
• Compatible with type MV-90 cables

Product Highlights

The splice kit is factory tested for reliability and rated for fifteen thousand amps. It is designed for feeder and distribution circuits and is suitable for direct burial installations.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Connector Type: In-Line
• Conductor Size: 350 - 750 kcmil
• Voltage Rating: 15 kV
• Insulation Size: 1.04 - 1.7 inches OD
• Splice Length: 32 inches
• Temperature Rating: 105 to 140 degrees Celsius
• Standard & Approvals: IEEE 404 Requirements
• Minimum Order Quantity: 1
