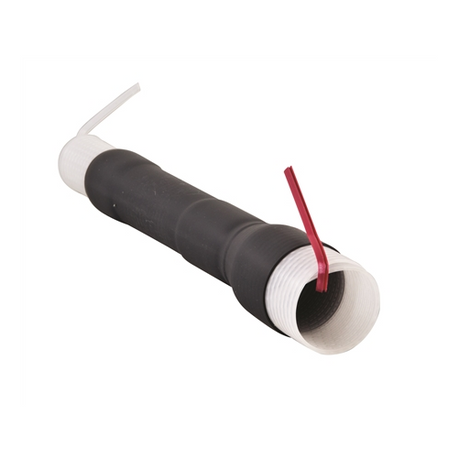

3M 054007-42011 3M™ 7640-S Cold Shrink QT-III Termination Kit, 1, Silicone Rubber

Product Description

3M Cold Shrink QT-III 7640-S termination kit is designed for use with jacketed concentric neutral and concentric neutral power cables. This kit provides a dependable seal and features a single-piece skirted termination. It can withstand voltage levels of five to thirty-five kilovolts, making it suitable for various outdoor applications.

• High dielectric-constant material ensures effective voltage distribution
• Durable silicone rubber insulation prevents leakage in damp conditions
• Compatible with conductor sizes ranging from 4/0 AWG to 4/0 AWG

Product Highlights

This termination kit is ideal for outdoor installations and offers a void-free seal that enhances performance and reliability.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Type: Cold Shrink QT-III
• Series: 7640-S
• Material: Silicone Rubber
• Voltage Rating: 5 to 35 kV
• Conductor Size Compatibility: (5 kV) 4/0 AWG - 400 kcmil, (8 kV) 3/0 AWG - 300 kcmil, (15 kV) 2 - 4/0 AWG
• Specifications: 110 kV BIL-Rated, 0.64 - 1.08 inches OD Cable Insulation, 9.8 inches Maximum Installed Length
• Minimum Order Qty: 1
• Standard & Approvals: IEEE 48 Approved
