3M 054007-41760 3M™ 7620-T Cold Shrink QT-III Termination Kit 3 (0.64 - 1.08 in OD) 054007-41760

Product Description

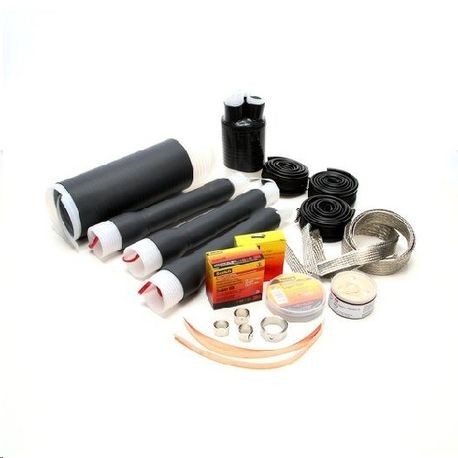

The 3M™ 7620-T Cold Shrink QT-III Termination Kit with MPN 054007-41760 provides a durable sealing solution for power cables. This kit includes three non-skirted, one-piece, three-phase terminations that ensure strong, pliable seals for a variety of cables, including tape shield, wire shield, and UniShield® power cables. Designed using high dielectric-constant materials, this termination kit can withstand voltage levels between five kV and thirty-five kV.

• Includes three non-skirted terminations.
• Suitable for indoor and weather-protected applications.
• Rated for various conductor sizes based on voltage levels.

Product Highlights

This termination kit is engineered for both reliability and ease of installation, making it suitable for various electrical applications.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Type: Cold Shrink QT-III
• Suitable For Use With: Conductor Size Range (5 kV) 4/0 AWG - 400 kcmil, (8 kV) 3/0 AWG - 300 kcmil, (15 kV) 2 - 4/0 AWG
• Material: Silicone Rubber
• Number of Pieces: 3
• Specifications: 110 kV BIL-Rated, 0.64 - 1.08 in OD Cable Insulation, 12 in Maximum Installed Length
• Color: Black
• GTIN: 00054007417606
• UPC: 054007417606
• Minimum Order Qty: 1
• Application: For Indoor and Weather-Protected
• Standard & Approvals: IEEE 48 Class 1 Approved
