Product Description

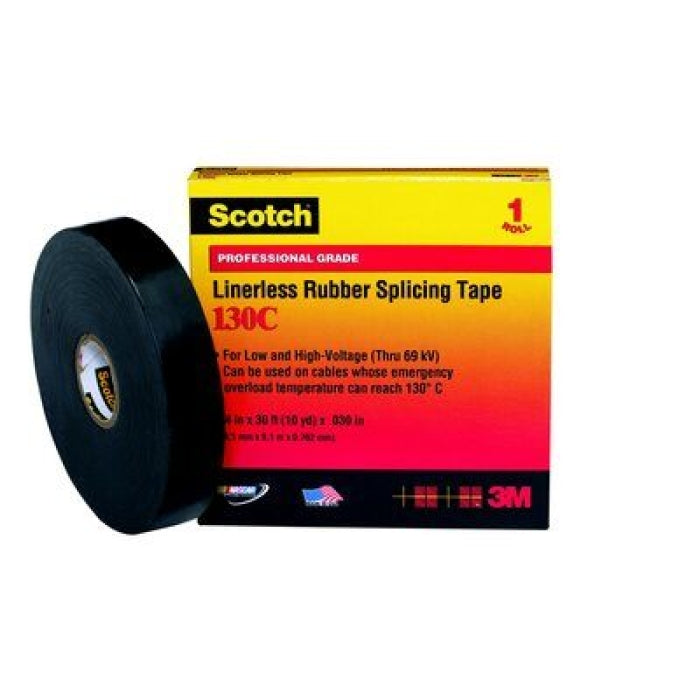

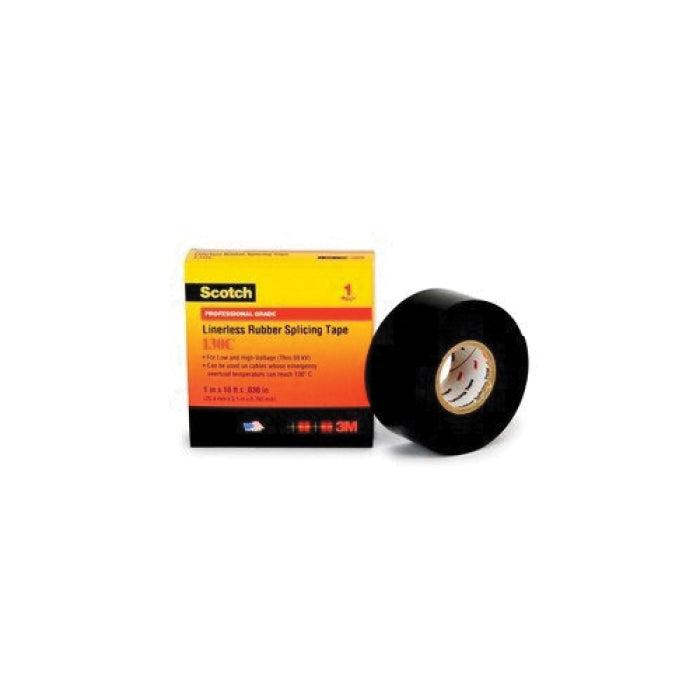

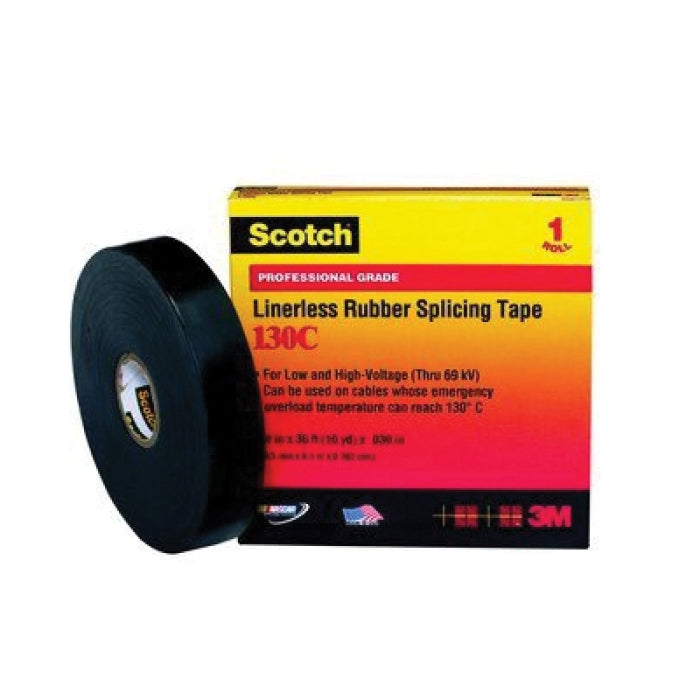

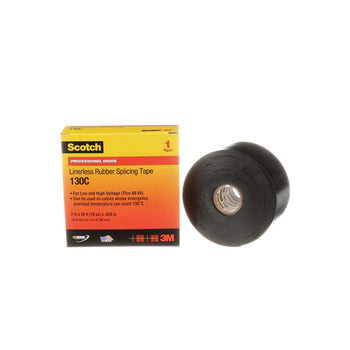

The 3M 054007-41754 Scotch Linerless rubber splicing tape 130C is a highly conformable, linerless ethylene propylene rubber (EPR), high voltage insulating tape that provides excellent thermal dissipation of splice heat. Rated up to 194 deg F continuous operating temperatures and short term 266 deg F overload service, it can be used for low and high voltage (through 69 kV) applications.
- Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV-resistance
- Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
- Suitable for splicing and terminating cables and wires
Product Highlights
The Scotch splicing tape meets industry specifications and has excellent physical and electrical properties, which help provide immediate moisture seal and void-free buildups.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: 054007-41754
Technical Specifications
-
Series: 130C
-
Length: 30 ft
-
Width: 2 in
-
Thickness: 30 mil
-
Color: Black
-
Adhesive: Rubber Resin
-
Backing Material: Rubber
-
Tensile Strength: 250 lb/in
-
Maximum Operating Temperature: 194 deg F
-
Specifications Met: ASTM D-4388 Type 1, 2 and 3, HH-I- 553C
-
Trade Name: Scotch
-
3M Number: 130C
-
Electrical or Thermal: Electrically Insulating
-
Adhesive Presence: Single-Sided
-
Adhesive Material: Rubber
-
Flame Retardant: Flame Retardant
-
Voltage Rating: 69 kV
-
Dielectric Strength: 750 V/mil
-
Elongation at Break: 850 %
-
Standards Met: ASTM D4388-08 Type:I, II and III
-
Material: EPR
-
Resists: UV
-
Temperature Rating: 194 deg F
