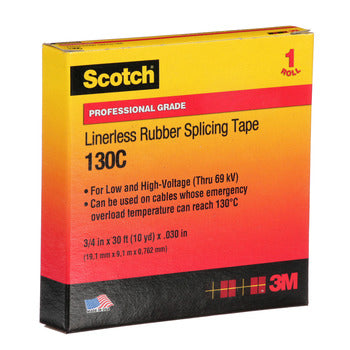

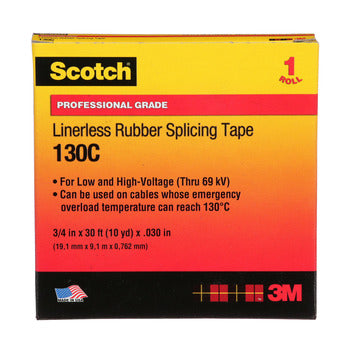

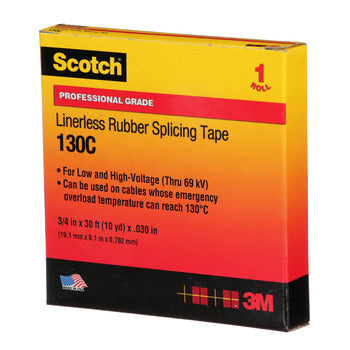

3M 054007-41717 Scotch 130C Black Insulating Tape - 3/4 in x 30 ft - 30 mil Thick

Product Description

The 3M 054007-41717 Scotch black insulating tape is sold 24 rolls per case. It has a dielectric strength of 750 V/mil and a tensile strength of 250 lb/in. The tape measures 30 mil in thickness and meets ASTM D4388-08 Type:I, II and III standards. It provides primary insulation for solid, dielectric insulated cables rated through 69 kV.

• Dielectric strength of 750 V/mil
• Tensile strength of 250 lb/in
• Thickness of 30 mil

Product Highlights

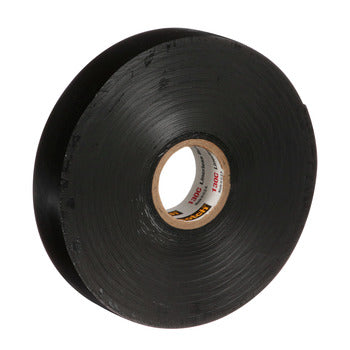

This 3M Scotch 130C black insulating tape provides excellent electrical and mechanical protection with a rubber resin adhesive and self-fusing, ethylene propylene backing. It is suitable for low and high voltage applications.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 054007-41717

Technical Specifications

• Brand: 3M
• Trade Name: Scotch
• 3M Number: 130C
• Electrical or Thermal: Electrically Insulating
• Width: 3/4 in
• Color: Black
• Backing Material: Rubber
• Adhesive Presence: Single-Sided
• Adhesive Material: Rubber
• Flame Retardant: Flame Retardant
• Thickness: 30 mil
• Length: 30 ft
• Voltage Rating: 69 kV
• Dielectric Strength: 750 V/mil
• Tensile Strength: 250 lb/in
• Maximum Operating Temperature: +194 °F
• Elongation at Break: 850 %
• Standards Met: ASTM D4388-08 Type:I, II and III
• Product Type: Electrical Tape
• Resists: UV
• Series: 130C Series
• Temperature Rating: 194 deg F
