3M 054007-15668 Cold Shrink Mine and Portable Splice Kit 5 to 8 kV 1.8 to 2.4 in Dia Cable 1/0 to 4/0 AWG Conductor

Product Description

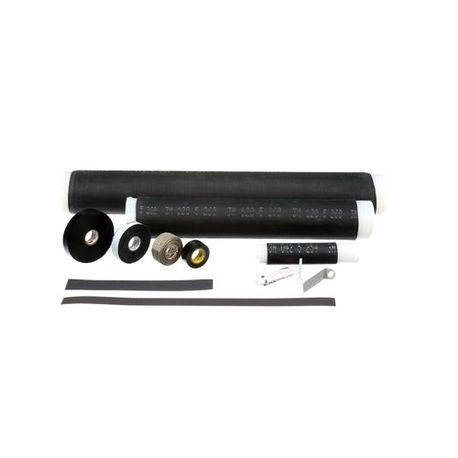

The 3M Cold Shrink Mine and Portable Splice Kit, MPN 054007-15668, is made for splicing SHD-GC, MP-GC, and MP cables rated at five to eight kilovolts. This kit consists of essential components that are crucial for effective cable splicing, ensuring that connections remain durable and secure.

• Includes three cold shrink connector insulating tubes
• Rated for five to eight kilovolt applications
• Accommodates wire sizes from one to four-aught AWG

Product Highlights

Optimal for cable connections in demanding environments. This kit supports high voltage applications and maintains safety standards.

Product Information

Standard Information

• Brand: 3M
• MPN: 054007-15668

Technical Specifications

• Cable Diameter: 1.8 to 2.4 in
• Material: EPDM Rubber
• Number of Conductors: 3
• GTIN: 00054007156680
• Cable Type: Non-Shielded
• Conductor Size: 1/0 to 4/0 AWG
• Color: Black
• Voltage Rating: 5 to 8 kV
