3M 054007-15066 Premium-Grade Special Use Electrical Tape 66 ft L x 1/2 in W

Product Description

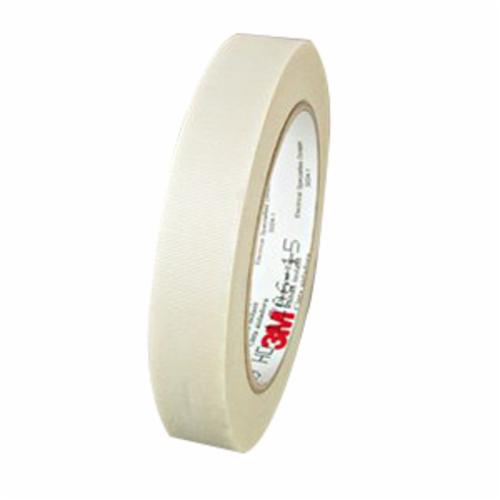

The 3M 054007-15066 electrical tape measures sixty-six feet in length and half an inch in width. It is made from glass cloth and features a thermosetable rubber adhesive, making it suitable for high-performance applications. This tape is designed for use in environments that require heat stability and mechanical strength.

• Insulating electric power supply leads
• Securing wires and electrical connections
• Rated for 600 VAC applications

Product Highlights

This electrical tape is effective for insulation purposes in harsh conditions. It provides reliable protection against electrical discharge.

Product Information

Standard Information

• Brand: 3M
• MPN: 054007-15066

Technical Specifications

• Length: 66 ft
• Width: 1/2 in
• Thickness: 7 mil
• Backing Material: Glass Cloth
• Adhesive Material: Thermosetable Rubber
• Core Diameter: 3 in
• Dielectric Strength: 3000 V/mil
• Voltage Rating: 600 VAC
• Tensile Strength: 150 in-lb
• Adhesion Strength: 30 in-oz
• Maximum Operating Temperature: 302 deg F
• Minimum Operating Temperature: 32 deg F
• Specifications Met: UL Listed, CSA Certified
