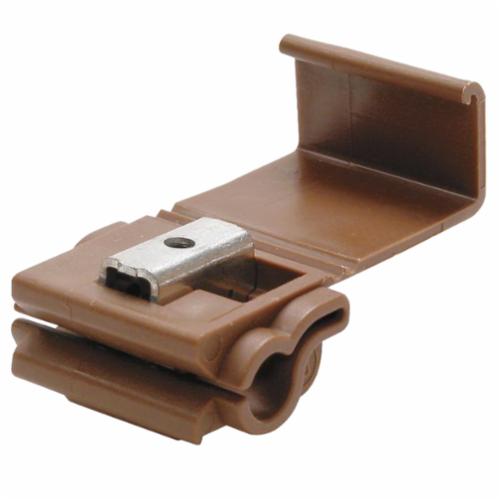

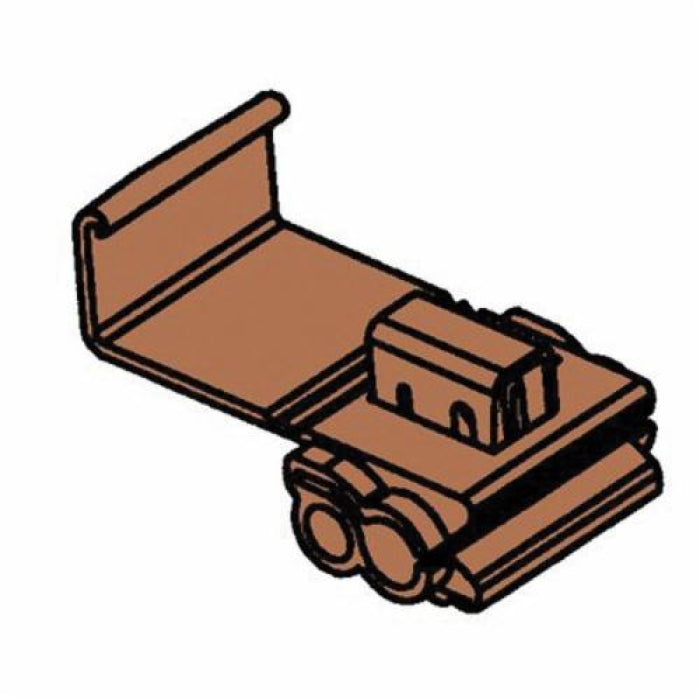

3M 054007-14887 Scotchlok Insulation Displacement Connector 18 to 14 AWG (Tap)/12 to 10 AWG (Run)

Product Description

The 3M 054007-14887 Scotchlok Insulation Displacement Connector electrically connects a tap wire end to a through run wire and insulates the connection. It accommodates 18 to 14 AWG tap and 12 to 10 AWG run solid or stranded copper wire. The connector features fully insulated insulation and is constructed from flame retardant polypropylene.

• Self-stripping and flame retardant
• Recommended installation tools - crimping tool no E-9BM, 9 in linemans pliers
• Dual element connection

Product Highlights

This Scotchlok insulation displacement connector is ideal for tap and run connections, offering a reliable and insulated connection.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 054007-14887
• Country of Origin: USA

Technical Specifications

• Series: 567
• Wire Type: Solid/Stranded Copper
• Wire Gauge (Tap): 18 to 14 AWG
• Wire Gauge (Run): 12 to 10 AWG
• Insulation: Fully Insulated
• Voltage: 600 VAC
• Max Insulation OD (Run): 0.19 in
• Max Insulation OD (Tap): 0.145 in
• Temperature Rating: 105 deg C
• Material: Flame Retardant Polypropylene
• Contact Plating: TiN Coated
• Application: For Electrically Connect A (Tap) Wire End to A Through (Run) Wire and Insulate the Connection
• Country of Origin: USA
• Type: Run/Tap
• Voltage Rating: 600 V
• Wire Size: 18 - 14 AWG (Tap)/ 12 - 10 AWG (Run)
• Brand: 3M
• Trade Name: Scotchlok
• 3M Number: 567-POUCH
• Connector Type: Tap Connector
• Maximum Insulation Outside Diameter: 0.145 in
• Resistant Properties: Chemical-Resistant
• Maximum Wire Diameter: 10 AWG
• Minimum Wire Diameter: 18 AWG
• Maximum Operating Temperature: +221 °F
• Insulation Material: Polypropylene
• Minimum Wire Size: 18 AWG
