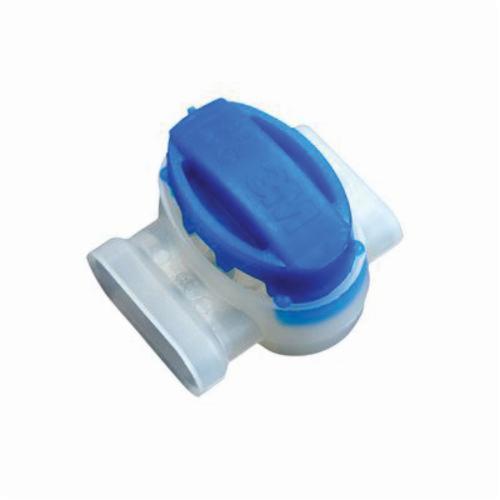

3M 054007-09230 314 pigtail splice terminal, 22 to 14 awg wire

Product Description

The 3M 054007-09230 314 Pigtail Splice Terminal is designed for electrically connecting two or three wire ends, insulating the connection, and providing a moisture-resistant seal. It is self-stripping and flame retardant, featuring a brass U-contact. Suitable for 22 to 14 AWG solid, stranded, tinned, and untinned copper wire, it uses a mineral oil base EG-3 grease sealant.

• Mineral oil base EG-3 grease sealant
• Connects two or three wire ends and insulates the connection
• Self-stripping, moisture resistant and flame retardant

Product Highlights

The 3M 314 Pigtail Splice Terminal provides a reliable, moisture-resistant seal for connecting 22 to 14 AWG wires.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 054007-09230
• Country of Origin: US

Technical Specifications

• Color: Blue
• Insulation Type: Fully Insulated
• Material: Flame Retardant Nylon
• Series: 314
• Temperature Rating: 105 deg C
• Type: Pigtail
• Voltage Rating: 600 VAC
• Wire Size: 22 to 14 AWG
• Wire Type: Solid/Stranded/Tinned/Untinned Copper
• Trade Name: Scotchlok
• Connector Type: IDC
• Maximum Insulation Outside Diameter: 0.155 in
• Resistant Properties: Moisture-Resistant
• Maximum Wire Diameter: 14 AWG
• Minimum Wire Diameter: 22 AWG
• Maximum Operating Temperature: 221 °F
• Standards Met: CSA LR15503
• Insulation Material: Nylon
• Part No: 054007-09230
• RoHS: Yes
• Operating Temperature: 105 °C
• Max Insulation Dia: 0.155 in
• Insulation: Nylon Insulated
