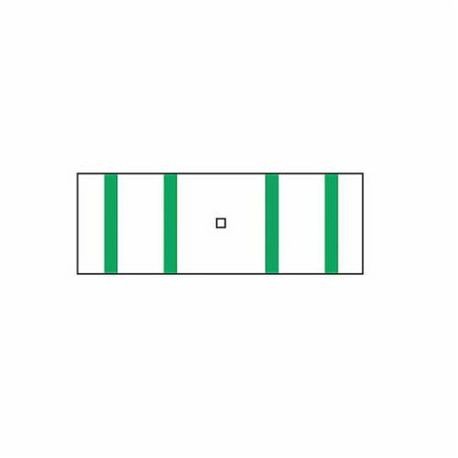

3M 054007-09206 Scotchlok Non-Insulated Seamless Barrel Compression Connector 1 AWG Stranded Copper Conductor

Product Description

The 3M 054007-09206 Scotchlok Non-Insulated Seamless Barrel Compression Connector is designed for secure electrical connections in various applications. This connector is made from seamless, electrolytic copper, which ensures excellent conductivity. It is suitable for use with one AWG stranded copper conductors.

• Constructed of seamless, electrolytic copper for good conductivity
• Chamfered barrel ends simplify wire insertion and positioning
• Crimp termination for secure connections

Product Highlights

This connector provides a reliable and safe electrical connection for large gauge wire applications.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Connector Type: Crimp
• Conductor Type: Stranded Copper
• Conductor Size: 1 AWG
• Length: 1.35 inches
• Finish: Tin-Plated
• Voltage Rating: 600 V
• Temperature Rating: 347 degrees F
• Specifications: 5/8 inches L Strip, 0.46 inches OD
• Minimum Order Qty: 1
