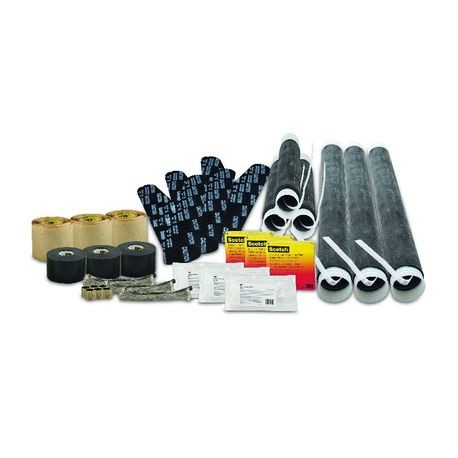

3M 054007-09091 5550 Cold Shrink Splice Kit 5/8 kVAC 500 to 1000 kcmil Conductor

Product Description

The 3M 5550 Cold Shrink Splice Kit 054007-09091 is a reliable solution for splicing 5/8 kVAC-rated power cables. This kit accommodates both aluminum and copper conductors, suitable for direct burial and various indoor or outdoor applications.

• Compatible with tape shield, wire shield, UniShield, and non-shielded cables.
• Insulator and jacket made from EPDM for enhanced durability.
• Designed for conductor sizes ranging from 500 to 1000 kcmil.

Product Highlights

Utilize this splice kit for effective in-line connections and ensure safety and performance in electrical installations.

Product Information

Standard Information

• Brand: 3M
• MPN: 054007-09091

Technical Specifications

• Voltage Rating: 5/8 kV
• Material: EPDM
• Cable Type: Tape Shield/UniShield/Wire Shield
• Series: 5550
• Temperature Rating: 90 to 130 degrees Celsius
• Insulation Size: 0.995 to 1.52 inches
• Conductor Size: 500 to 1000 kcmil
• Splice Length: 23 inches
• Connector Type: In-Line
• Number of Conductors: 1
