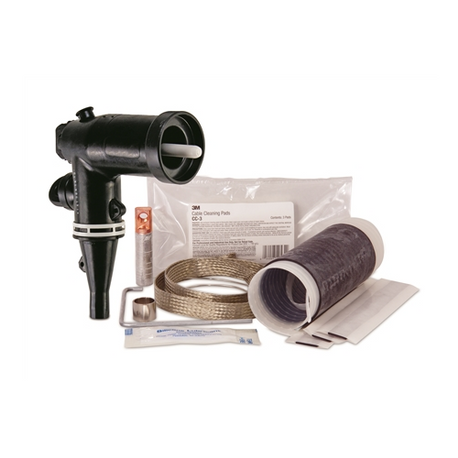

3M 054007-04774 3M™ 5810 Elbow Loadbreak Connector 15 kV 200 A 1 AWG Conductor 0.7 - 0.91 in Dia Cable

Product Description

The 3M™ 5810 Elbow Loadbreak Connector, MPN 054007-04774, is an essential component for connecting underground cable to transformers and switchgear. This connector is suitable for 5 - 15 kV applications and can handle a current of up to 200 Amps. It is designed to accommodate a cable diameter range of 0.7 to 0.91 inches and works with various cable types including tape shield and wire shield.

• Fully shielded and insulated for safe connections
• Includes necessary ground assemblies for proper grounding
• Molded from high-quality peroxide-cured EPDM insulation

Product Highlights

This connector's design ensures reliable performance in industrial environments. It includes a copper-top compression connector that simplifies installation and ensures a secure connection.

Product Information

Standard Information

• Brand: 3M
• Part Number: 3-M5810-B-2

Technical Specifications

• Material: EPDM Rubber Insulation
• Type: Elbow
• Cable Diameter: 0.7 - 0.91 inches
• Connection Type: Coppertop Compression
• Series: 5810
• GTIN: 00054007047742
• Conductor Size: 1 AWG
• Voltage Rating: 15 kV
• Amperage Rating: 200 A
• Minimum Order Qty: 1
