3M 051135-35586 FP-301 Flexible Heat Shrink Tubing 600 V 100 ft

Product Description

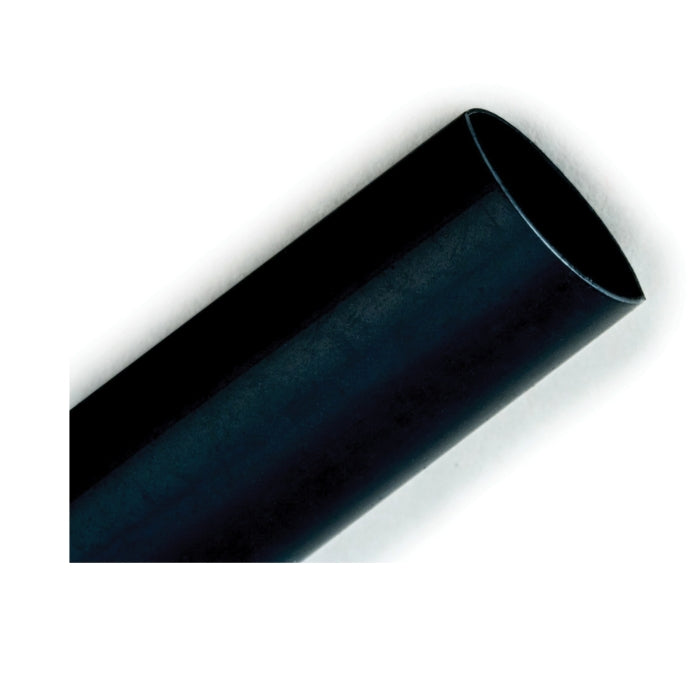

3M heat shrink tubing FP-301 is made for general purposes. It has a flexible polyolefin construction and provides flame-retardant insulation for applications rated up to 600 volts. With a two-to-one shrink ratio, this tubing is ideal for industrial and military uses. The high expansion ratio allows for easy fitting over terminals and cable splices.

• Balances electrical, physical, and chemical properties
• Provides shrink fit protection and strain relief
• Flame-retardant and moisture-proof

Product Highlights

This tubing offers a reliable solution for lightweight wire harness covering and component packaging.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Series: FP-301
• Inner Diameter Expanded: 1/2 inch
• Inner Diameter Recovered: 1/4 inch
• Wall Thickness Recovered: 0.025 inch
• Shrink Ratio: 2:1
• Length: 100 feet
• Temperature Rating: -67 to 275 degrees Fahrenheit
• Shrink Temperature: 212 degrees Fahrenheit
• Material: Polyolefin
• Color: Black
• Voltage Rating: 600 volts
