3M 051128-61342 Scotchcast Inline Resin Power Cable Splice Kit 5 kV Single Conductor 1 kV Multi-Conductors

Product Description

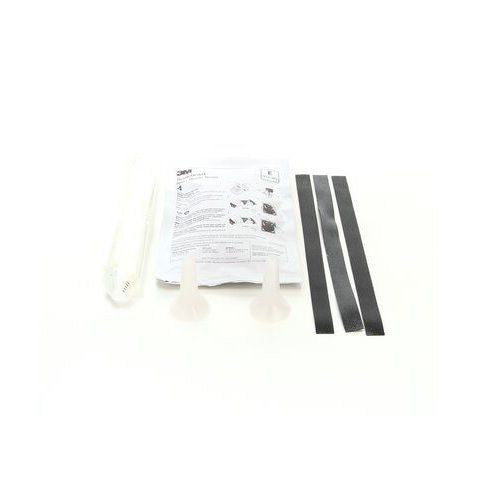

3M 051128-61342 Scotchcast inline resin power cable splice kit is designed to insulate and seal unshielded, single conductor cables rated for 5 kV and multiple conductor cables rated for 1 kV. This splice kit is suitable for both weather-exposed areas and direct burial installations. The kit comes with a mold body, pouring spouts, electrical tape, and resin, making it ideal for splicing non-shielded cables that are either wet or dry.

• Insulates and seals unshielded single and multiple conductor cables
• Designed for outdoor or direct burial applications
• Includes all necessary components for easy installation

Product Highlights

UL listed and compliant with RoHS standards, this splice kit simplifies cable management tasks in demanding environments.

Product Information

Standard Information

• Manufacturer: 3M
• Brand: Scotchcast

Technical Specifications

• Cable Diameter: 5/8 to 1 in
• Cable Type: Multiple Conductor/Portable
• Conductor Size: 2 to 3/0 AWG
• Insulation Size: 5/8 to 1 in OD
• Material: Epoxy
• Splice Length: 6 in
• Type: Inline Resin
• Voltage Rating: 5 kV Single Conductor, 1 kV Multi-Conductors
