3M 051128-60891 5620K Cold Shrink QT-II Termination Kit, 3, Silicone Rubber, 0.56 - 0.87 in OD Cable Insulation, Black

Product Description

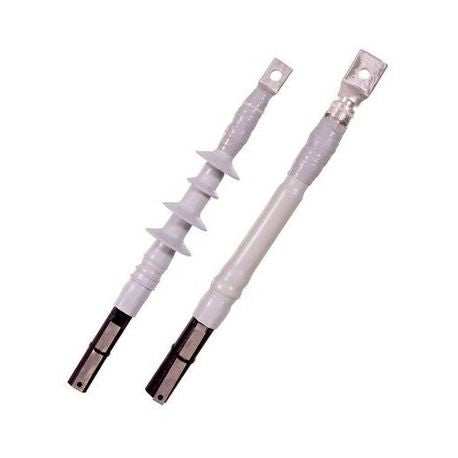

The 3M 051128-60891 Cold Shrink QT-II 5620K Series Termination Kit includes three single-phase terminations. This kit is designed for use with tape shield, wire shield, and UniShield power cables, providing a reliable seal. The silicone rubber insulation is made from a high dielectric-constant material that allows the termination to handle voltages from five to fifteen kilovolts.

• Includes three individual cold shrink terminations
• Suitable for indoor applications
• Non-tracking, durable silicone rubber construction

Product Highlights

Ideal for electrical installations requiring a robust and flexible termination solution.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Type: Cold Shrink QT-II
• Suitable For Use With: Conductor Size Range (5 kV, 100%) 2/0 AWG - 250 kcmil, (5 kV, 133%) 1/0 - 4/0 AWG
• Material: Silicone Rubber
• Specifications: 110 kV BIL-Rated, 0.56 - 0.87 in OD Cable Insulation, 11 in Maximum Installed Length
• Number of Pieces: 3
• Color: Black
• GTIN: 00051128608913
• Series: 5620K
• UNSPSC: 26121648
• Order Interval: 1
• UPC: 051128608913
• Minimum Order Qty: 1
• Application: For Indoor
• Standard & Approvals: IEEE 48 Class 1 Approved
