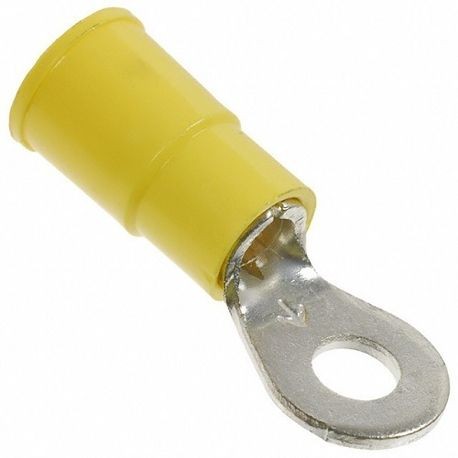

3M 051128-60033 Insulated Standard Ring Terminal, 12 - 10 AWG Conductor, 1.26 in L, 051128-60033

Product Description

The 3M Highland Insulated Standard Ring Terminal, MPN 051128-60033, is designed for reliable electrical connections. It supports conductor sizes ranging from twelve to ten American Wire Gauge (AWG) and is ideal for various electrical applications.

• Yellow vinyl insulation provides added safety and security.
• Butted seam barrel ensures a secure fit.
• Made of electrolytic copper for excellent conductivity.

Product Highlights

This terminal features a crimp termination design that allows for effective use in a variety of settings, including building fixtures and luminaires.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Length: 1.26 inches
• Barrel Type: Butted Seam
• Color: Yellow
• GTIN: 00051128600337
• Conductor Size: 12 to 10 AWG
• Tongue Type: Ring
• Type: Insulated Standard
• Specifications: 1/4 inch Maximum Insulation Diameter, 0.44 inch Clearance
• Tongue Size: 0.53 inches wide x 0.04 inches thick
• Voltage Rating: 600/1000 VAC
• Barrel Size: 0.135 inches inside diameter x 0.25 inches long
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Stud Size: 1/4 inch
• Material: Copper
• Finish: Tin Plated
• Vendor SKU: 051128-60033
• Minimum Order Quantity: 1
• UNSPSC: 39121432
• Application: For Building Fixtures or Luminaires, Wires and Signs
• Standard & Approvals: LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed
