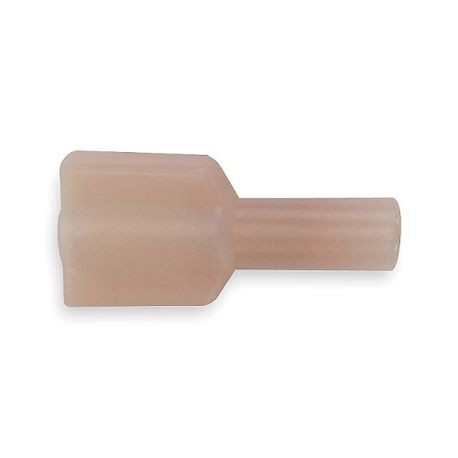

3M 051128-60026 Insulated Male Disconnect 22 to 18 AWG 1/4 in Tab

Product Description

The 3M Highland 051128-60026 Insulated Male Disconnect is designed for reliable electrical connections. This terminal is suitable for conductors ranging from 22 to 18 AWG and features a one-fourth inch tab for versatile use.

• Color-coded for easy identification
• Designed with a butted-seam barrel for secure wire insertion
• Constructed from copper with a corrosion-resistant tin plating

Product Highlights

This male disconnect terminal ensures a strong holding force, allows for fast disconnection of wires, and operates under high voltage ratings, making it ideal for various applications.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Specifications: 0.032 inches T
• Dimensions: 0.95 inches L x 0.44 inches W
• Barrel Type: Butted Seam
• Material: Copper
• Finish: Tin Plated
• Voltage Rating: 600/1000 VAC
• GTIN: 00051128600269
• Type: Insulated
• Tab Size: 1/4 inches
• Terminal Type: Crimp
• Color: Red
• Temperature Rating: -40 to 221 degrees F
• Order Interval: 1
• Minimum Order Qty: 1
• UPC: 051128600269
• UNSPSC: 39121432
• Vendor SKU: 051128-60026
• Standard & Approvals: CSA Certified, RoHS Compliant, UL Listed
