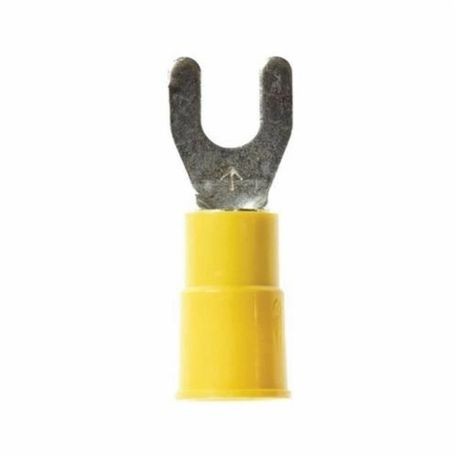

3M 051128-60011 Highland Insulated Standard Fork Terminal 16 to 14 AWG Conductor

Product Description

The 3M Highland Insulated Standard Fork Terminal, MPN 051128-60011, is designed for use with 16 to 14 AWG conductors. This terminal features a robust design that includes a butted seam barrel for secure connections. The blue color-coded vinyl insulation aids in identification.

• Color-coded design enhances identification.
• Funnel-shaped PVC sleeve simplifies wire insertion.
• Constructed with electrolytic copper for better conductivity.

Product Highlights

Reliable and efficient for building wire applications, fixtures, and signs.

Product Information

Standard Information

• Brand: 3M
• MPN: 051128-60011

Technical Specifications

• Length: 0.9 inches
• Barrel Type: Butted Seam
• Barrel Size: 0.09 inches ID x 1/4 inches L
• Material: Copper
• Finish: Electro-Tin Plated
• Type: Insulated Standard
• Tongue Type: Fork
• Conductor Type: Stranded Copper
• Voltage Rating: 600 to 1000 VAC
• Temperature Rating: -40 to 221 degrees F
• Stud Size: NO 10
• Minimum Order Quantity: 1
• UPC: 051128600115
• Standard & Approvals: LR22190 CSA Certified, RoHS Compliant
