3M 051128-60010 Highland Insulated Standard Fork Terminal 12 to 10 AWG 051128-60010

Product Description

The 3M Highland 051128-60010 Insulated Standard Fork Terminal is designed for reliable electrical connections. This terminal is suitable for use with conductors sized twelve to ten AWG and measures one point zero three inches in length. Its butted seam barrel ensures a secure fit for effective performance.

• Designed for standard electrical connections.
• Made from electrolytic copper for high conductivity.
• Features a color-coded system for easier installation.

Product Highlights

This terminal is ideal for building wire, fixtures, luminaires, and signs. It's designed to provide strong and durable connections in various electrical applications.

Product Information

Standard Information

• Brand: 3M
• Part Number: 3-MFV10-8Q

Technical Specifications

• Type: Insulated Standard
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Voltage Rating: 600 to 1000 VAC
• Conductor Size: 12 to 10 AWG
• Material: Copper

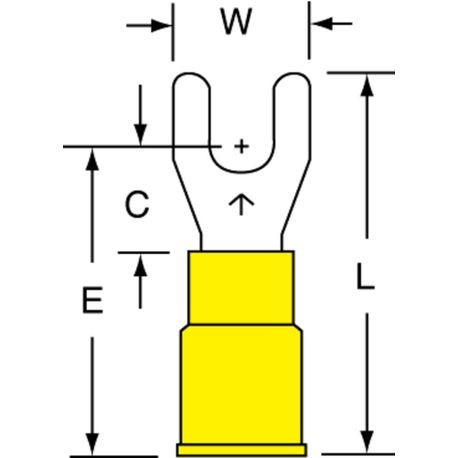

• Barrel Size: 0.135 inches ID x 1/4 inches L
• Tongue Size: 0.38 inches W x 0.04 inches T
• Weight: 0
