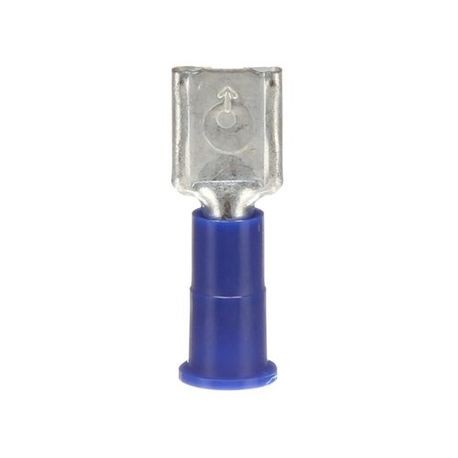

3M 051128-60006 Highland Insulated Standard Female Disconnect 16 to 14 AWG Conductor 0.25 in W x 0.032 in THK Tab

Product Description

The 3M Highland Insulated Standard Female Disconnect, MPN 051128-60006, features a robust design for secure electrical connections. It is suitable for use with sixteen to fourteen AWG conductors. The disconnect terminal has a tab size of a quarter inch in width and thirty-two thousandths of an inch thick.

• Designed for use with 16 to 14 AWG wires.
• Constructed from brass with corrosion-resistant tin plating.
• Offers easy wire insertion and excellent holding force.

Product Highlights

This terminal is ideal for building fixtures, luminaires, and wiring applications. The design allows for quick and easy disconnect.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Finish: TiN Plated
• Color: Blue
• Dimensions: 0.87 in L
• Temperature Rating: -40 to 221 deg F
• Material: Brass
• Voltage Rating: 600/1000 VAC
• Tab Size: 0.25 in W x 0.032 in THK
