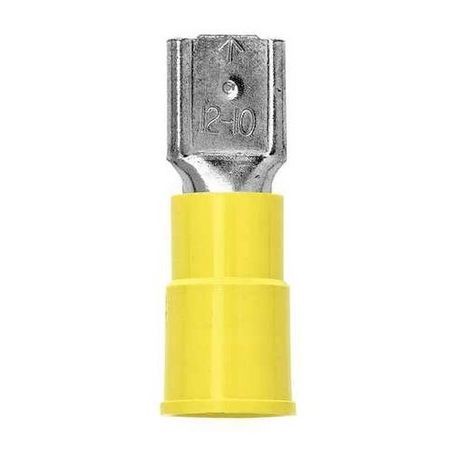

3M 051128-60004 Highland Insulated Standard Female Disconnect 12 to 10 AWG Conductor 0.25 in W x 0.032 in THK Tab

Product Description

The 3M Highland 051128-60004 is an insulated standard female disconnect terminal designed for use with twelve to ten American Wire Gauge (AWG) conductors. This product features a robust construction aimed at providing secure connections in electrical applications.

• Compatible with 12 to 10 AWG conductors.
• Made of brass with corrosion-resistant tin plating.
• Dents and rolled edges enhance holding force.

Product Highlights

This product is suitable for various electrical applications, such as building fixtures and signage. The terminal allows for quick and easy disconnection due to its design, which ensures that wires can be inserted easily and securely.

Product Information

Standard Information

• Brand: 3M
• Manufacturer: 3M

Technical Specifications

• Material: Brass
• Voltage Rating: 600/1000 VAC
• Temperature Rating: -40 to 221 deg F
• Tab Size: 0.25 in W x 0.032 in THK
• Dimensions: 0.95 in L
• Conductor Size: 12 to 10 AWG
• UPC: 051128600047
• GTIN: 00051128600047
