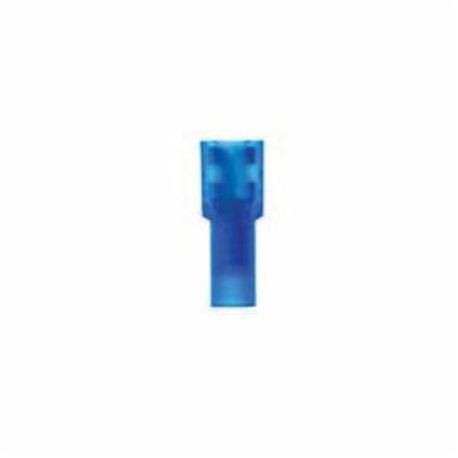

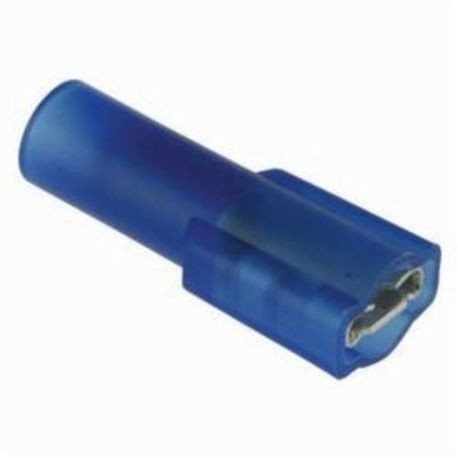

3M 051128-60001 Fully Insulated Disconnect Terminal 16 to 14 AWG Conductor 1/4 in W Tab Butted Seam

Product Description

The 3M 051128-60001 disconnect terminal is a fully insulated female connector designed for use with 16 to 14 AWG conductors. This product features a butted-seam barrel and a one-quarter inch wide tab for secure connections. It is rated to operate in temperatures from negative forty to two hundred twenty-one degrees Fahrenheit.

• Offers easy insertion of wires
• Made of durable brass for good conductivity
• Corrosion-resistant tin plating

Product Highlights

This disconnect terminal is ideal for automotive, electronic, and industrial applications. It allows for quick and reliable connections while maintaining electrical integrity.

Product Information

Standard Information

• Brand: 3M
• MPN: 051128-60001

Technical Specifications

• Type: Fully Insulated
• Conductor Size: 16 to 14 AWG
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Voltage Rating: 600 VAC
• Tab Size: 1/4 in W
• Color: Blue
• Dimensions: 0.87 in L x 0.37 in W x 0.032 in H
• Material: Nylon/Brass
