3M 051128-59999 Highland Fully Insulated Female Disconnect 12 to 10 AWG Conductor 0.25 in W x 0.032 in THK Tab

Product Description

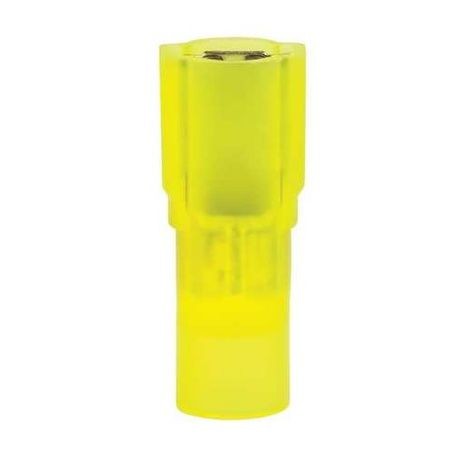

The 3M Highland 051128-59999 is a fully insulated female disconnect terminal designed for use with twelve to ten AWG conductors. This component is essential for building fixtures, luminaires, signs, and wire connections. It features unique dents and rolled edges that enhance its holding force while allowing for quick disconnection when needed.

• Nylon insulated for durability
• Easy wire insertion
• Made with corrosion-resistant brass

Product Highlights

This disconnect terminal provides reliable performance and is ideal for various electrical applications. Its robust construction ensures lasting functionality.

Product Information

Standard Information

• Brand: 3M
• MPN: 051128-59999

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Barrel Type: Butted Seam
• Terminal Type: Crimp
• Dimensions: 0.99 in L
• Tab Size: 0.25 in W x 0.032 in THK
• Voltage Rating: 600/1000 VAC
• Temperature Rating: -40 to 221 degrees F
• Finish: TiN Plated
• Material: Brass
• UPC: 051128599990
• GTIN: 00051128599990
• Standard & Approvals: LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL Listed
• Application: For Building Fixtures or Luminaires, Signs, and Wire
