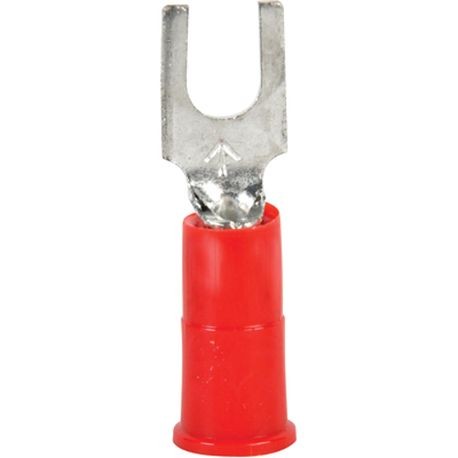

3M 051128-59994 Insulated Block Fork Terminal 22 - 18 AWG Conductor 0.85 in L Butted Seam Barrel

Product Description

The 3M 051128-59994 is an insulated block fork terminal designed for wires ranging from 22 AWG to 18 AWG. With a length of zero point eighty-five inches, this product features a butted seam barrel made from electrolytic copper which ensures effective connectivity and conductivity.

• Red vinyl insulation provides protection and ensures durability.
• Funnel-designed sleeve allows for easy wire insertion.
• Suitable for terminal block applications.

Product Highlights

This product is ideal for building wire, fixtures, luminaires, and signs, making it versatile for various electrical installations.

Product Information

Standard Information

• Brand: 3M
• MPN: 051128-59994

Technical Specifications

• Type: Insulated Block
• Finish: Electro-Tin Plated
• Conductor Type: Stranded Copper
• Voltage Rating: 600 to 1000 VAC
• Conductor Size: 22 to 18 AWG
• Barrel Size: 0.07 in ID x 1/4 in L
• Temperature Rating: -40 to 221 deg F
• Stud Size: NO 6
