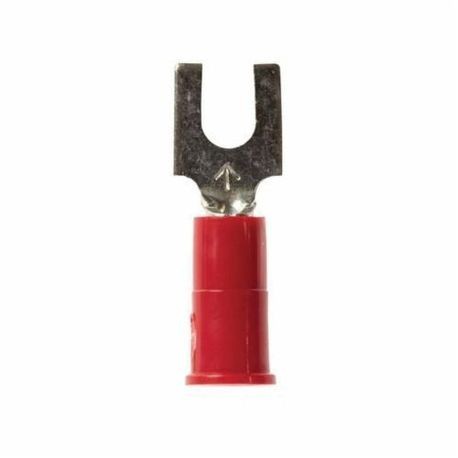

3M 051128-59993 Insulated Block Fork Terminal 22 - 18 AWG Conductor 0.85 in L

Product Description

The 3M 051128-59993 Insulated Block Fork Terminal is designed for use with conductors from twenty-two to eighteen AWG. It features a length of zero point eighty-five inches and an electrolytic copper construction for reliable conductivity.

• Funnel-shaped polyvinyl chloride sleeve for easy wire insertion
• Abrasion and corrosion resistant
• In-line mounting for convenient installation

Product Highlights

This terminal is suitable for building wire, fixtures, or luminaires. The butted seam barrel enhances the secure fit, ensuring optimal performance in electrical applications.

Product Information

Standard Information

• Brand: 3M
• MPN: 051128-59993

Technical Specifications

• Conductor Size: 22 to 18 AWG
• Length: 0.85 in
• Material: Copper
• Voltage Rating: 600 to 1000 VAC
• Temperature Rating: -40 to 221 deg F
• Standard & Approvals: LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E23438 Listed
• Color: Red
• Barrel Type: Butted Seam
