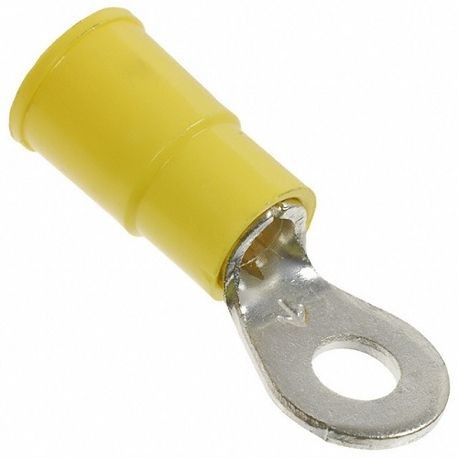

3M 051128-58983 Scotchlok Insulated Standard Ring Terminal 12 - 10 AWG Conductor

Product Description

The 3M Scotchlok 051128-58983 is an insulated standard ring terminal designed for use with twelve to ten AWG conductors. This terminal features a yellow vinyl insulation that provides a secure fit and reliable performance. The brazed seam barrel allows for a strong crimp on the wire, ensuring durability and conductivity.

• Funnel-designed PVC sleeve for easy wire insertion
• Standard ring tongue fits securely around studs
• Made of electrolytic copper for better conductivity

Product Highlights

This terminal is suitable for various applications, including building fixtures, luminaires, and signs.

Product Information

Standard Information

• Brand: 3M
• MPN: 051128-58983

Technical Specifications

• Barrel Size: 0.135 in ID x 0.25 in L
• Length: 1.26 in
• Material: Copper
• Barrel Type: Brazed Seam
• Voltage Rating: 600/1000 VAC
• Conductor Size: 12 to 10 AWG
• Temperature Rating: -40 to 221 deg F
• Finish: Tin Plated
