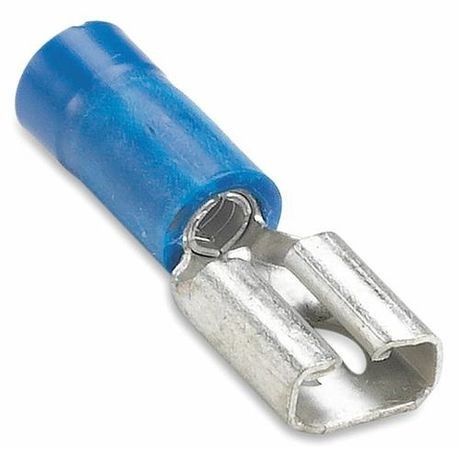

3M 051128-58938 Scotchlok Insulated Standard Female Disconnect 16-14 AWG 0.25 in W x 0.032 in THK Tab Vinyl Blue

Product Description

The 3M 051128-58938 Scotchlok Insulated Standard Female Disconnect is designed for efficient wire management in building fixtures, luminaires, and signs. This product ensures robust connectivity in electrical setups.

• Vinyl insulated for durability and safety.
• Features rolled edges and dents for superior holding force.
• Quick and easy wire disconnects.

Product Highlights

This terminal connector facilitates easy wire insertion thanks to its interlocking barrel and funnel-designed sleeve. Crafted from brass and coated with corrosion-resistant tin, the terminal offers excellent conductivity and longevity.

Product Information

Standard Information

• Brand: 3M
• Type: Insulated Standard Female Disconnect

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Tab Size: 0.25 inches W x 0.032 inches THK
• Material: Brass
• Finish: Tin Plated
• Voltage Rating: 600/1000 VAC
• Temperature Rating: -40 to 221 degrees Fahrenheit
• Approvals: LR22190 CSA Certified, RoHS 2011/65/EU Compliant, UL E70512 Listed
